NYDR-3051 RF Capacitance Liquid Level Meter​​

NYDR-3051 RF Capacitance Liquid Level Meter​​ Operating Principle

The working principle of NYDR-3051 RF capacitance liquid level meter is based on RF (RF) capacitance technology. A radio frequency is applied to the probe to determine the impact of the surrounding environment through continuous analysis. Because all the materials have dielectric constant and their conductivity is different from that of air, the total impedance of the probe is changed because of the small capacitance deviation when the probe is in contact with the material. Because the electric probe and the wall of the container form the two polar plates of the capacitor, the insulator of the probe and the surrounding air become the dielectric material. When air (dielectric constant 1.0) is replaced by any other material (dielectric constant > 1.0) The change of capacitance caused the change of impedance. This effect is measured by the circuit and compared with the reference set up by the sensitivity setting (circuit).

NYDR-3051 RF Capacitance Liquid Level Meter​​ Technical Parameter

※ Note: Products can be customized according to the specific requirements of users!

NYDR-3051 RF Capacitance Liquid Level Meter​​ Design Features

• Modular converter and sensor integration, no moving parts, high reliability, strong anti-jamming ability;
• More extensive applicability, there are a variety of probe forms, a variety of process connection forms, a variety of production materials, customizable design;
• Installation, debugging and maintenance are extremely convenient

NYDR-3051 RF Capacitance Liquid Level Meter​​ Installation requirements

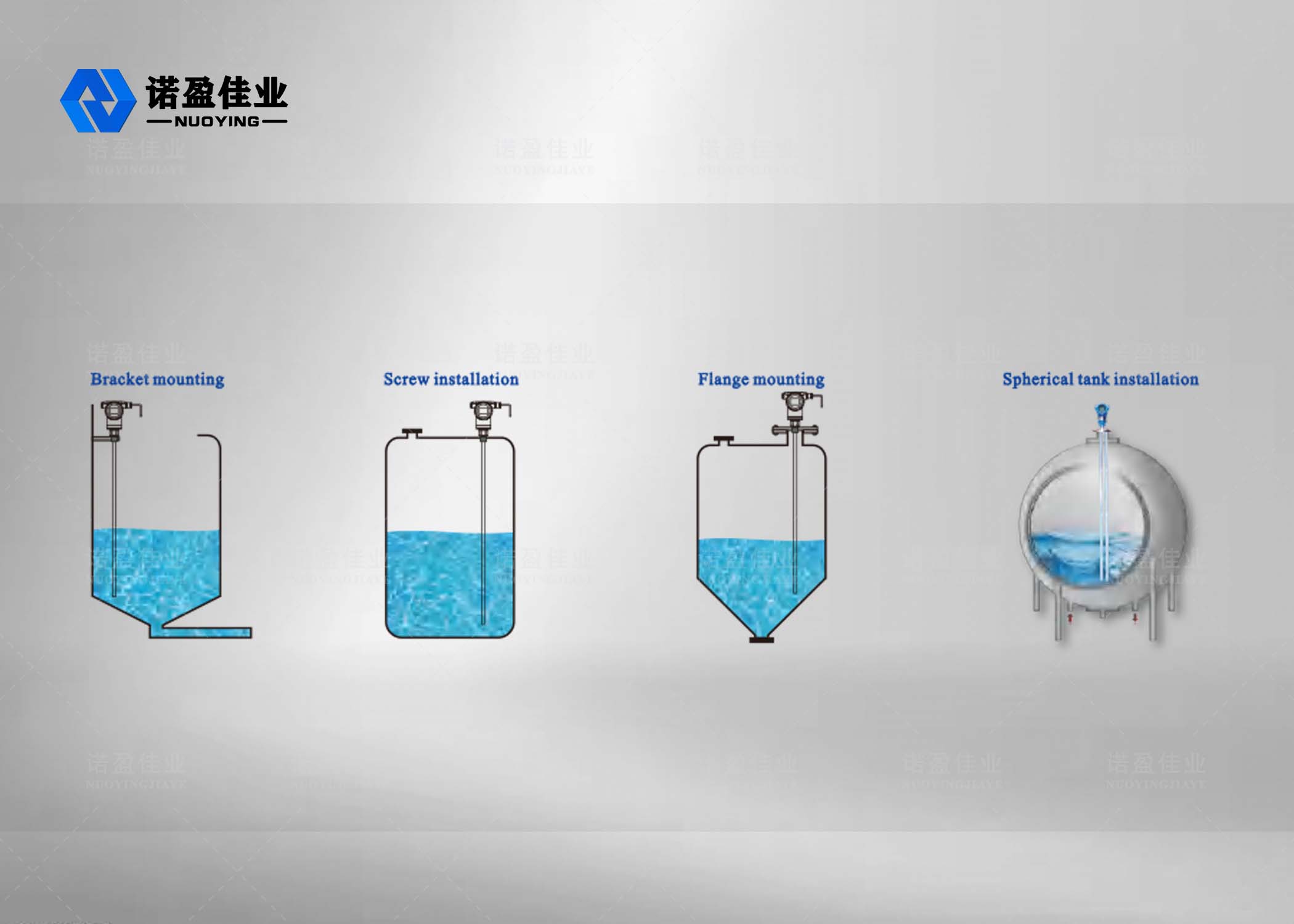

In addition to double rod type, three installation modes, thread, flange or support, can be selected.

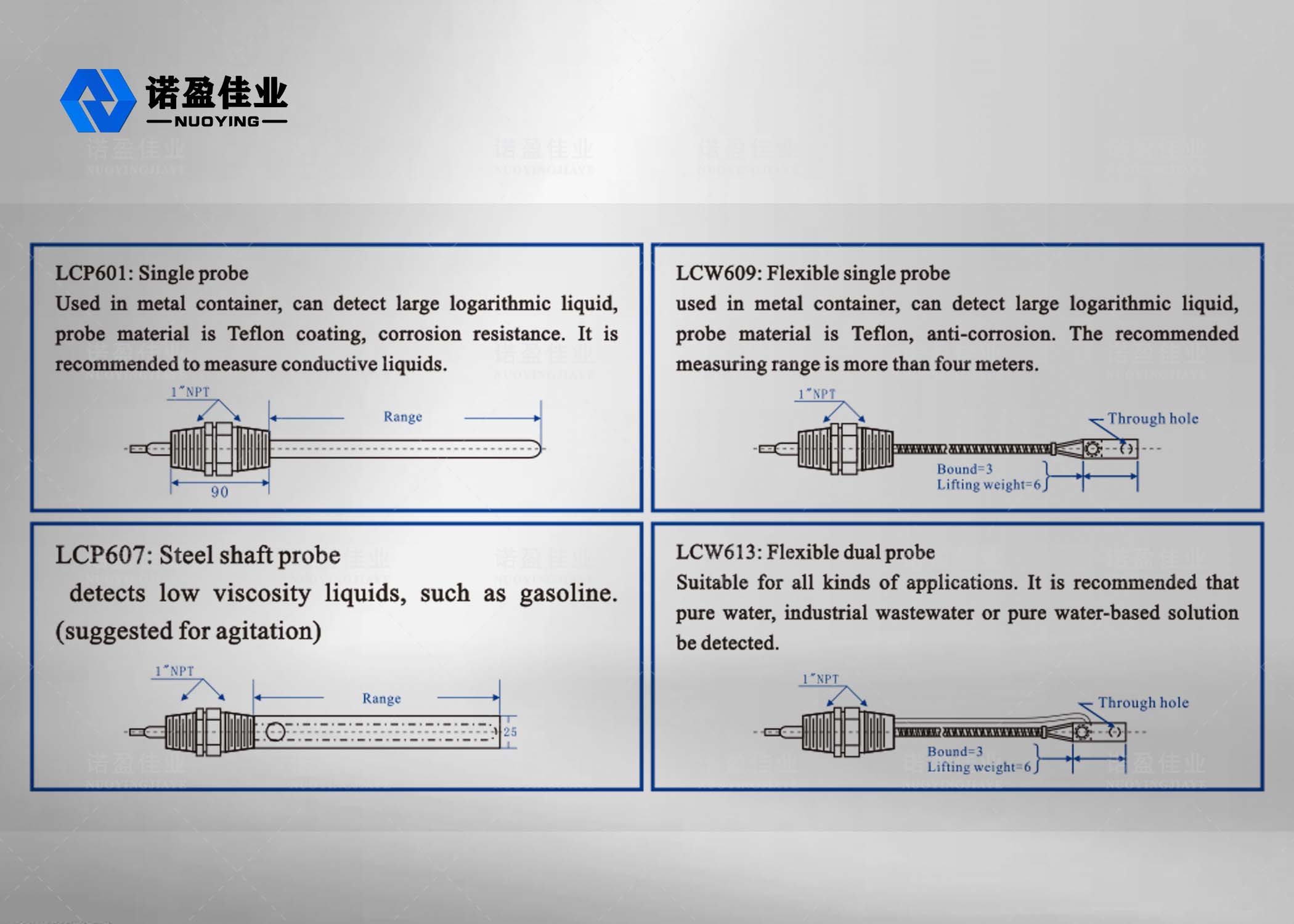

• LCP: is fitted with 1mm thick PTFE insulator on stainless steel rod.
  LCW: is coated with 0.3mm thick PTFE material on copper cable.

NYDR-3051 RF Capacitance Liquid Level Meter​​ Electrical connections

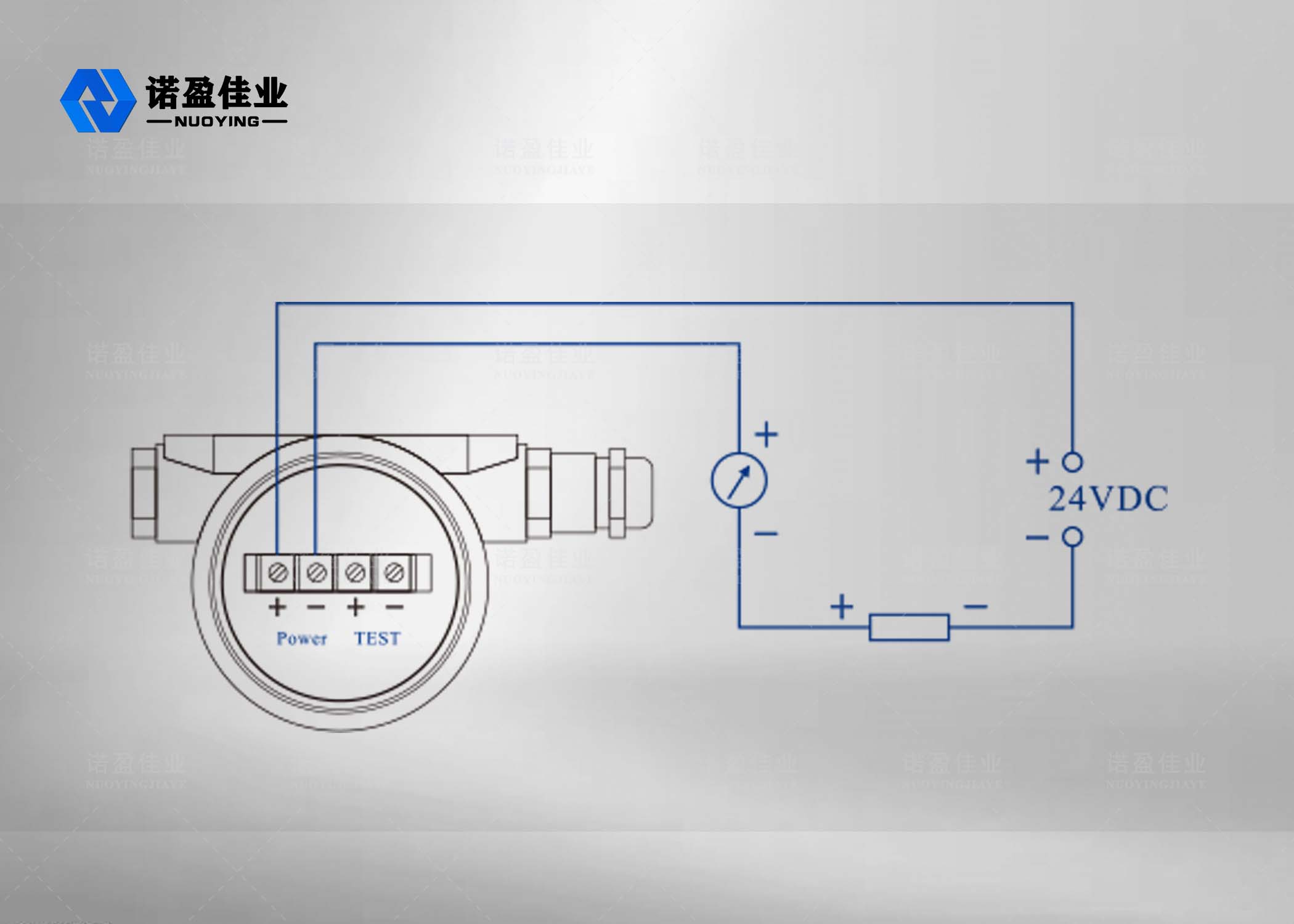

• Two of the four terminals are power supply,【+】 【一】 indirect 24vDC power supply; [TEST+]【TEST-】 indirect ammeter can measure 4~20mA signal.

NYDR-3051 RF Capacitance Liquid Level Meter​​ Application field

Capacitive level meter can be used for continuous level measurement of almost all strong, weak corrosion resistant and non-corrosive media in open or pressxire vessels. Widely used in: Petroleum, Chemical, Fertilizer, Metallurgy, Natural Gas, Power Plant, Machinery Manufacturing, ship, Pharmaceutical Factory, sewage treatment, Food, Liquor and other industrial occasions of liquid level detection and control.
