Side Mounted Magnetic Oil Tank Level Sensor Water Tank Level Gauge Indicator For Tank

Side Mounted Magnetic Oil Tank Level Sensor Water Tank Level Gauge Indicator For Tank​ Description:

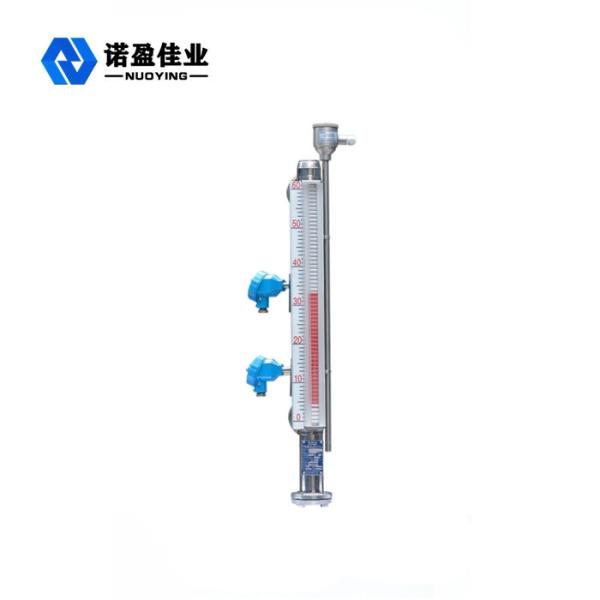

The NYUHZ-A type magnetic flap liquid level transmitter is made up of measuring body,dual-colored display cylinder, ruler, top&low flange, magnetic ball and transmitter (4-20mA). Based on buoyance principle, the magnetic ball in the body of the level indicator is up or down with the liquid level changing and makes dual-colored turning to show the level of medium. Each cylinder is with two-color axisym metric structures. The distance of two cylinders is 10mm. Red side of display cylinder indicates liquid and white side display cylinder indicates air. Besides measuring liquid level, it also could measure the interface of the two kinds of liquid.

Side Mounted Magnetic Oil Tank Level Sensor Water Tank Level Gauge Indicator For Tank​ Parameters:

Side Mounted Magnetic Oil Tank Level Sensor Water Tank Level Gauge Indicator For Tank Applications:

Widely used in petroleum, chemical industry, oil field, pharmaceuticals industry,food, wine industry etc.,

suitable for level measurements under the environment of high/lowtemp., high pressure, strong corrosion, toxicity.

Company Introduction

 Xi'an Dehou Electronic Technology Co., Ltd. is a high-tech enterprise specializing in research and development, production, sales of industrial automation instruments and providing Internet of Things solutions.

At present, the company has obtained more than 100 patents and more than 20 soft patents. It has passed IS09001 quality management, IS014001 environmental management, IS045001 Occupational Health and safety management, Occupational Health and Safety Management, GBT29490 Intellectual Property Management, military standard, information security and other system certification and EU CE certification, Russian EAC certification, ATEX explosion-proof certification and SIL certification and other qualifications.

The company is committed to the system integration of process measurement, control, management and other aspects of the system and the development, development, production, sales and service of intelligent instruments and instruments of the Internet of Things.At present, it has metering level FM radar level, pulse radar level, radio frequency guide level, liquid level of magnetover, magnetoexpansion level, sound fork density (level), pressure, flow, multi-point thermometer, analysis, system and tank area meter.The products are widely used in petrochemical industry, coal chemical industry, metallurgy, electric power, building materials, food and medicine and environmental protection water treatment and other industries.

The company can provide customers with location, pressure, temperature, flow, measurement requirements of analytical instruments and cooperation of the Internet of T scheme.
