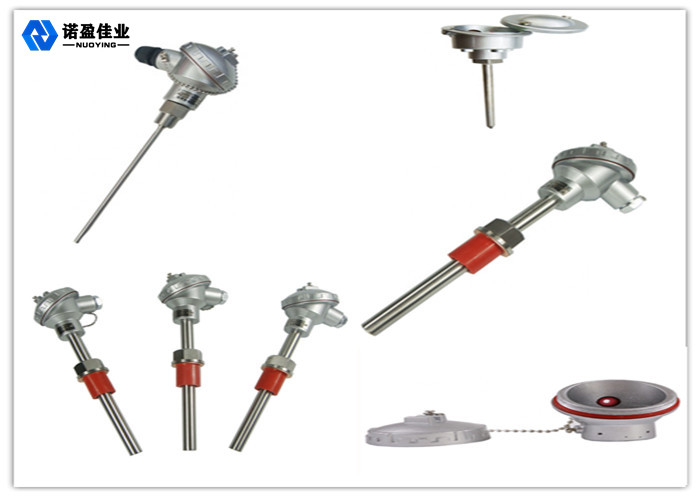

Industrial Thermocouple 4-20ma Pt100 Temperature Transmitter Sensor
Industrial Thermocouple 4-20ma Pt100 Temperature Transmitter Sensor Description:
Industrial Thermocouple 4-20ma Pt100 Temperature Transmitter as a
measurement of the temperature sensor, Usually, and display
instruments, recording instruments and electronic supporting the
use of regulator. It can be directly measured in various production
processes From -20℃~500℃range of liquid, steam and gas and solid
medium surface temperature.
According to the provisions of the state, Our company in line with
the IEC international standard index number Pt100 platinum thermal
resistance And in accordance with the professional standards index
number Cu50 thermal resistance two categories two kinds of assembly
type, unified design thermal resistance.
Industrial Thermocouple 4-20ma Pt100 Temperature Transmitter Sensor
Working Principle:
Thermal transmitter is when the temperature changes its resistance
along with the characteristic changes of temperature measurement
using the material. The thermal resistance of the heating part
(temperature sensor) is made of metal wire even double wound on the
insulating material on the skeleton. When measured in the medium
temperature gradient exists, The average temperature of the
measured temperature is the temperature of the components within
the dielectric layer in the.
Assembly type thermal resistance is mainly composed of a junction
box, protection tube, terminals, the insulating casing and the
temperature sensing element is the basic structure, And with a
variety of mounting and fixing device.
The temperature sensing element NT platinum thermal resistance is a
platinum wire winding, Double platinum resistance is mainly used to
detect the same place temperature occasions with two sets of
display, recording or regulator.
Industrial Thermocouple 4-20ma Pt100 Temperature Transmitter Sensor
Design Features:
◎ Simple installation and optional range of temperature
measurement;
◎ Gas-liquid dual purpose, any medium compatible with 316L;
◎ Multiple linear analog signals are optional; Fast reaction speed,
high precision, exquisite and durable structure, strong
anti-interference ability;
◎ Good long-term stability, low energy consumption, small volume;
◎ Waterproof, explosion-proof heat-resistant, anti-seismic.
Industrial Thermocouple 4-20ma Pt100 Temperature Transmitter Sensor
Technical Parameters:
| Working power supply | 12-36VDC | Output | Two-wire system 4~20mA |
| Measurement accuracy | 0.1%FS;0.2%FS | Response time | ≤1s(0-90%) |
| Excitation current | 0.2±0.01mA | Sensor | Various types of thermal resistance,thermocouple |
| Load | 250Ω or 500Ω | Dielectric strength | 1500V AC/1min |
| Insulation resistance | ≥100MΩ | | |
| Operating temperature | -20~+60℃ | | |
| Model | Type | Measuring range | Minimum measuring range |
| Thermal resistance | Pt100 | -200~+850℃ | 10℃ |
| Cu50 | -50~+150℃ | 10℃ |
| B | 400~+1820℃ | 500℃ |
| E | -100~+1000℃ | 50℃ |
| J | -100~+1200℃ | 50℃ |
| K | -180~+1372℃ | 50℃ |
| N | -200~+1300℃ | 50℃ |
| R | -50~+1760℃ | 500℃ |
| S | -50~+1760℃ | 500℃ |
| T | -200~+400℃ | 50℃ |
| Resistance signal | Resistance sensor | 0~4500Ω | 10Ω |
※ Note: Products can be customized according to the specific requirements of users!
Application Field of Industrial Thermocouple 4-20ma Pt100 Temperature Transmitter Sensor
Petroleum, chemical, chemical fiber; Textile, rubber, building
materials; Electric power, metallurgy, medicine; On-site
temperature measurement process control in food and other
industrial fields; Especially suitable for computer measurement and
control system, can also be used with instruments. Such as: piping
and ventilation system, hydraulic and pneumatic system, cooling
system and heating system, water supply and hot water system, air
conditioning system, automation system temperature measurement and
control.
