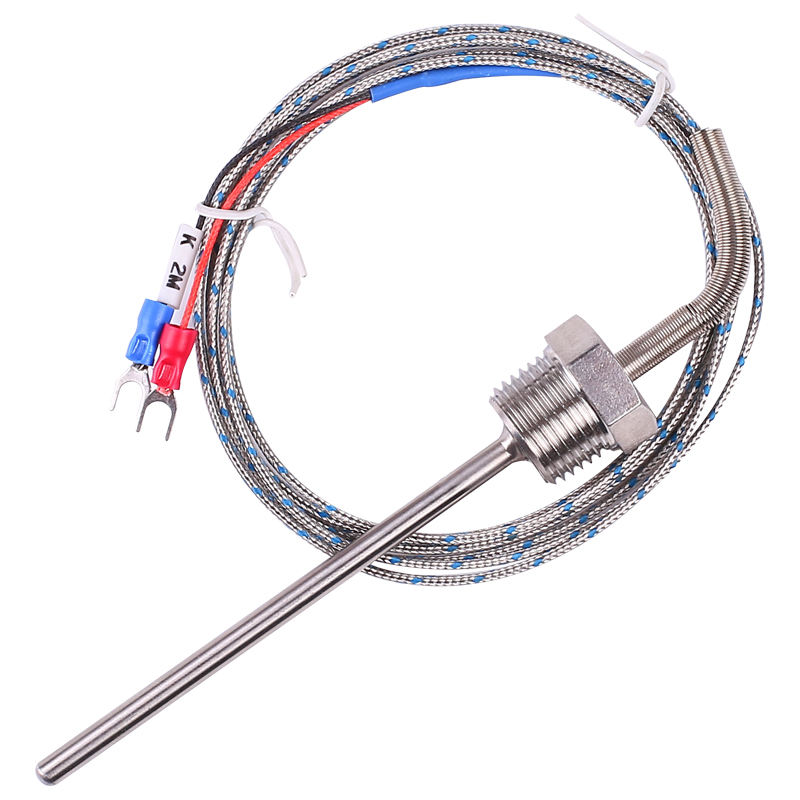

Industrial Thermo Well K Type Thermocouple Sensor

Industrial Thermo Well K Type Thermocouple Sensor Description:

Industrial thermo well K type thermocouple sensor is a temperature sensor using platinum (PT) resistance and temperature has a certain functional relationship, because of its high precision, large measurement range, reproducibility and stability. Can directly measure the surface temperature of various liquids, vapors, gases and solids. Especially suitable for installation in special miniaturized temperature places, pipe narrow, bending, fast response requirements.
Temperature sensor specifications:
1. The temperature range of use:
K (- 50 ~ 1300 ° C), S (50 ~ 1700 ° C), T (200 ~ 350 ° C),E (0 ~ 800 ° C), J (0 ~ 1000 ° C), B (300 ~ 1800 ° C), N (0 ~ 1300 ° C) PT100: -200 to 500℃ for Class A, -200 to 600℃ for Class B Cu50 ( -50 ~ 150℃ ) , Cu100 ( -50 ~ 150℃ )
2. Use the 2/3-wire interface
3. Accuracy from Class I, Class II

Themocouple Temperature Sensor
Application Fields	Dust-free plant or workshop, sreenhoxise. room, environment protection, household appliance laboratprialplatfoim etc	Greenhouse, soil laboratorial platform, petrochemical Industxy,meet, rice storage, fermentation, wine making etc
Type	Simple type thermocouple. 2 wire	Direct plug-in type thermpcouple. 2 wire
Accuiacy	ClassI, Class II
Measuring Range	K(-50 ~ 1300℃ ), S (-50 ~ 1700℃ ), T(-200 ~ 350℃ ), E(0~ 800°C), J(0~ 1000℃),B(300- 1800℃)N(0~ 1300°C)
Protection Tube material and Dia.	304SS,φ2mm,φ3mm. ,φ5mm ,6mm, 8mm ,10mm or customized	304SS. 316SS; 2mm. 3mm. 5mm. 6mm. 8mm. 10mm or customized
Connecting Cable	Nonnal cable, PVC;PTFE High tempeiature proof cable, silica gel cable. Mica cable etc
Themocouple Temperature Sensor
Application Fields	Pipe inspection, compressors, engines, motor, shipbuilding, sears, bearings. petrochemical, industrial equipment ,food machinery,boiler, furnace, tempeiature control systym, metallurgy, cement ,printing and dyeing,hydropowar, thermal power, wind power, laborstorial platfom, glass	Pipe inspection, petrochemicals, liquid handling equipment, food machinery, chemical equipment,metallurgy, hydropower,thermal power, experimental platform, buildmg materials
Type	Single thread armored thermocouple	Single Flaneed. armored thermocouple
Accuiacy	ClassI, Class II
Measuring Range	K(-50 ~ 1300℃ ), S (-50 ~ 1700℃ ), T(-200 ~ 350℃ ), E(0~ 800°C), J(0~ 1000℃),B(300- 1800℃)N(0~ 1300°C)
Protection Tube Material &Dia.	304SS:316SS; 5mm. 6mm. 8mm. 10mm: 12mm or customized

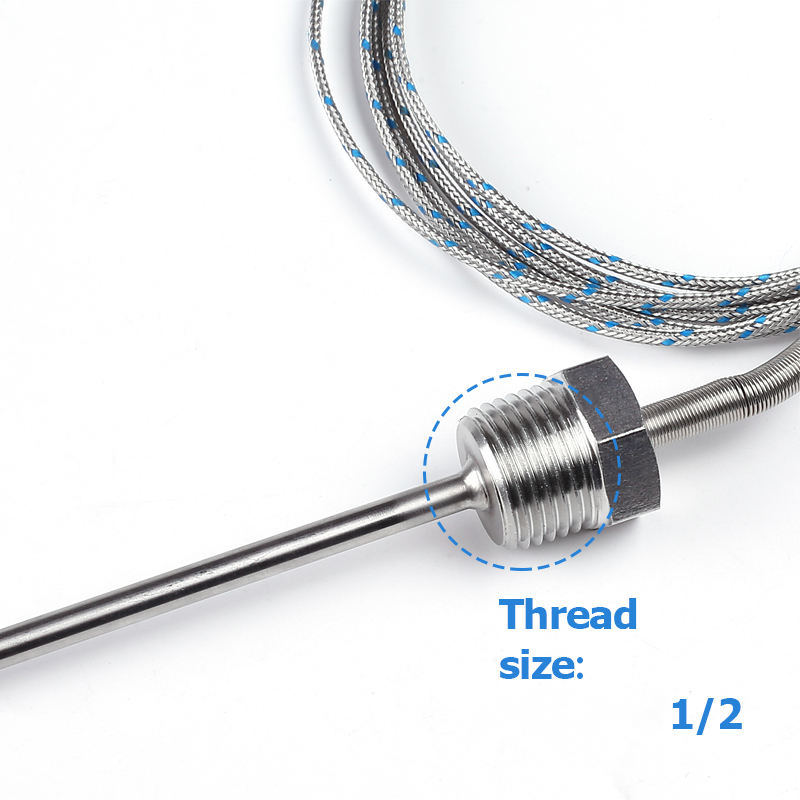

Process Connection	Thread M8X1.5,M10X1.5,M12x1.5,M16x1.5etc	Flange ,customized
Connecting Cable	Nonnal cable,PVC;PTFE;High temperature proof cable, silica gel cable,Mica cable etc

Industrial Thermo Well K Type Thermocouple Sensor Features:

1. High precision and good stability;
2. High sensitivity and good linearity;
3. Short response time and good compatibility;
4. Compact structure, easy installation, good waterproof performance
