3051 Differential Pressure Sensor 12VDC Measuring Liquid Gas Air

Ask Lasest Price
Brand Name :	NUOYINGJIAYE
Model Number :	NP-3051DP
Certification :	Explosion-proof certificate,SIL3,CE
Price :	$245.0~$325.0
Payment Terms :	T/T
Supply Ability :	500pcs/pre month

Add to Cart

Product Details
Company Profile

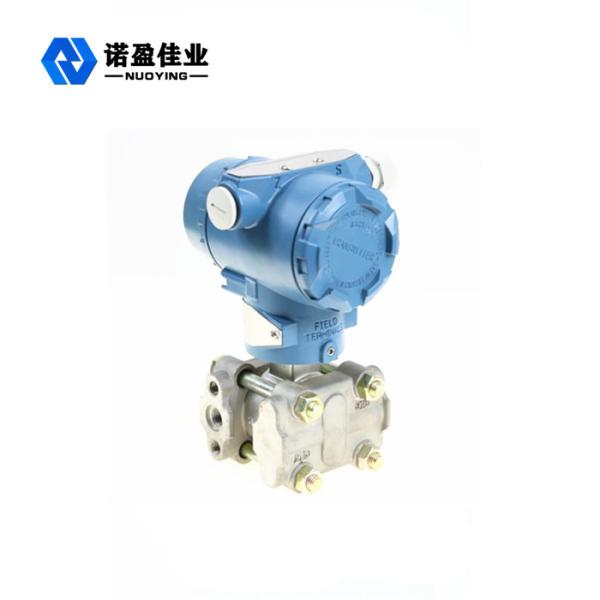

3051 Differential Pressure Sensor 12VDC Measuring Liquid Gas Air

3051 Low Cost Differential Pressure Sensor Trasnmitter

3051 Low Cost Differential Pressure Sensor Trasnmitter Description:

Differential pressure sensor trasnmitter 4-20ma delivers unparalleled reliability, performance and safety to increase your plant profitability.3051DC pressure transmitter 4-20ma means a stronger bottom line. The comprehensive offering enhances your pressure, level and flow applications from simple measurement to stringent SIL3 safety compliance.

3051 Low Cost Differential Pressure Sensor Trasnmitter Techinical Parameters:

Measuring medium	liquid, gas
Measuring range	Range 3 0-1.3~7.5kPa
	Range 4 0-6.2~37.4kPa
	Range 5 0-31~186.8kPa
	Range 6 0-117~690kPa
	Range 7 0-345~2068kPa
	Range 8 0-1170~6890kPa
	Range 9 0-3480~20680kPa
	Range 0 0-6890~41370kPa
Accuracy	±0.1% URL ±0.2% URL
Signal output	4~20mA 4~20mA with HART
Supply voltage	24VDC(12VDC~45VDC) Explosion-proof type:12~28VDC
Stability	±0.1 URL in six months
Medium temperature	-40~+100°C
Storage temperature	-40~+100°C(without LCD display) -40~+70°C(with LCD display)
Operating temperature	-40~+85°C(without LCD display) -30~+60°C(with LCD display)
Ambient temperature	-0~-100% relative humidity
Temperature impact	±(0.2%URL+0.18%inspection range)/56°C
Power supply effect	Less than 0.0059% / V of the output range
Load effect	No load is affected unless the supply voltage changes
Vibration effect	The vibration effect is ± 0.05% URL / g at 200 Hz in any axial direction.
EMI/RFI effect	Between 20 to 1000MHz;field strength up to 30V / M; the output drift less than ± 0.1% range;
Installation site effect	Maximum Zero drift is ± 0.25kPa; all zero drift can be corrected.
Zero point positive and negative migration	When zero is moving, the minimum range must be larger than or equal to - URL, the maximum range must be less than or equal to + URL. The calibration range must be greater than or equal to the minimum range.
Zero and range	Zero and range can be adjusted with the instrument range and zero button, or with the HART handhold remote adjustment.
Static pressure and over-pressure limit	Transmitter on any side plus 0 to 13.79MPa pressure will not cause damage. In the 0kPa to the transmitter range of the upper limit of the work to meet the performance requirements.
Damping time constant	The time constant is adjustable, incremented by 0.1 seconds, from minimum to 16.0 seconds.
Explosion-proof grade	Intrinsically safe: Exia II CT6 Flameproof: Exd II BT5
Protection grade	IP65

3051 Low Cost Differential Pressure Sensor Trasnmitter Installation types:
