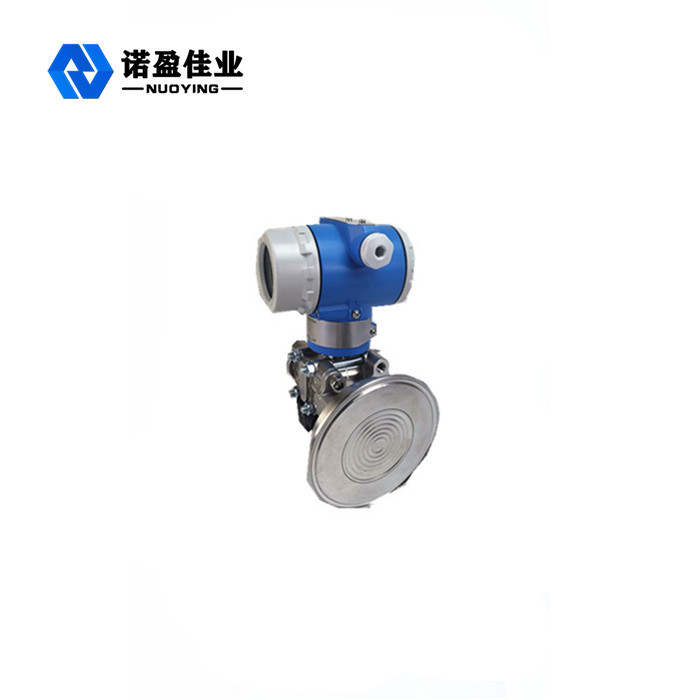

    CE Smart Differential Pressure Transmitter 12.5-45VDC Two Wire

    Ask Lasest Price
    Brand Name : NUOYINGJIAYE
    Model Number : NP-3051DP
    Certification : Explosion-proof certificate,SIL3,CE
    Price : $265.0~$480.0
    Payment Terms : T/T
    Supply Ability : 500pcs/pre month
    • Product Details
    • Company Profile

    CE Smart Differential Pressure Transmitter 12.5-45VDC Two Wire

    Liquid Smart Differential Pressure Transmitter Sensor


    Liquid Smart Differential Pressure Transmitter Sensor Description:


    Liquid Differential Pressure Transmitter Sensor is the result of a combination of self-developed anti-jamming, high stability digital circuits and the introduction of foreign Single crystal resonant silicon sensor technology. Its performance much better than our domestic metal capacitive sensor technology transmitter, and main show in the field zero stability and long-term operation stability, and rapid response.


    Liquid Smart Differential Pressure Transmitter Sensor Parameters:


    Range codeRangeMeasuring range
    Min.Max.
    40.374KPa37.4KPa-37.4~37.4KPa
    51.868KPa186.8KPa-186.8~186.8KPa
    66.9KPa690KPa-690~690KPa
    720.68KPa2068KPa-2068~2068KPa

    OutputAnalog output: two -wire 4-20mADC
    Digital output: two -wire 4-20mADC and superimposing variable digital signal accord with HART
    Power supplysupply voltage 24VDC
    Limit loadMax load resistor Rmax in loop decided by the supply voltage, see the below drawing. HART PROTOCOL require the load resistor not less than 250Q,not more than 600Q
    Communication distanceMax. 1.5Km, multi-address communication can connect 15 smart transmitters Max.
    Display4 digital display,5 digit LCD display, pointer type.
    Explosion-proofExiallCT5;explosion suppression type
    Zero offsetCan positive transfer or negative transfer, but can not overstep the utmost value
    Temperatureambient temperature -40-85°C(When choose LCD : -20- 70©
    Medium temperature-40 104°C
    Static pressure and single side overpressure3.45KPa(absolute pressure)31.2MPa (gauge pressure)
    Relative humidity5 98%RH
    Run-up timeless than 5 sec.
    Capability changeLess than 0.16cm3
    Damp adjust0.20 25 second
    Malfunction alarmingIf occur malfunction, automatism diagnose function will output 3.9 or 21.0mA
    Configuration protectionTo avoid the datas are modified random, can utilize software or protect switch lock the record data

    Liquid Smart Differential Pressure Transmitter Sensor Features:


    Single crystal resonant silicon sensor technology
    Super performance, use to measure pressure, differential pressure and temperature..
    Accuracy: ±0.075%~±0.1%F.S/±0.2%F.S
    Stability: ≤0.2%
    Standard 4~20mA,RS-485 communication interface
    Support upgrade of basic scene control technique
    Little temperature effect
    Little static effect
    Overload can reach 2 times

    CE Smart Differential Pressure Transmitter 12.5-45VDC Two WireCE Smart Differential Pressure Transmitter 12.5-45VDC Two Wire


    Liquid Smart Differential Pressure Transmitter Sensor Application:


    Compatible with 316LSS,noncorrosive liquids.
    Shipping and aviation industry.
    Hydraulic pressure and pneumatic control system
    Apply in Petroleum industry, chemical industry, electric power, metallurgy, hydrology etc process control.
