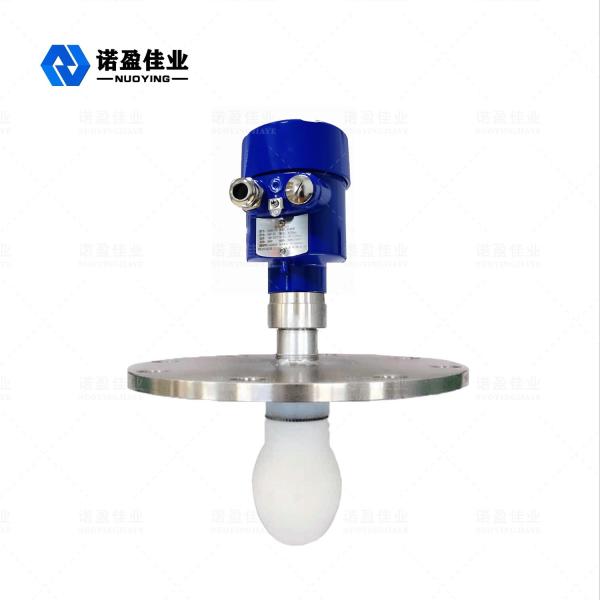

26GHz NYRD-SD Radar Level Meter

Water drop type anticorrosive radar object level meter adopts microwave pulse measurement method, and can be normal in the range of industrial frequency band, low beam energy, can be installed in a variety of metal, non-metal containers or pipelines, non-contact continuous measurement of liquid, slurry and particle material object level. Applicable to the dust, change of temperature, pressure, and presence of inert gas and steam. Radar level meter has no harm to the human body and the environment, but also has the advantages of not being affected by the proportion of medium, not being affected by the change of dielectric constant, and not needing on-site adjustment. It is a very good choice whether for industrial needs, or for the consideration of economic benefits to customers.

Radar Level Meter Technical Parameter

※ Note: Products can be customized according to the specific requirements of users!

The radar level meter antenna using PFA material,PFA plastic is a copolymer of a small amount of perfluoropropyl perfluorovinyl ether and polytetrafluoroethylene. The melting cohesiveness is enhanced and the viscosity of the solution is decreased, while the properties are unchanged compared with that of PTFE. The resin can be directly processed by ordinary thermoplastic molding. Suitable for making corrosion-resistant parts, wear resistant parts, sealing parts, insulating parts and medical instrument parts.

Radar Level Meter Measuring principle

The radar level antenna emits a narrow microwave pulse and transmits it down through the antenna. After the pulse touches the surface of the medium being measured, it is reflected back and accepted by the antenna system again, transmitting the signal to the electronic circuit part automatically converted into a object position signal(because the pulse propagation speed is extremely fast, The time it takes for electromagnetic waves to reach the target and reflect back to the receiver is almost instantaneous.)

Radar Level Meter Design features

• Water drop antenna is small in size and easy to install; Non-contact radar, no wear, no pollution.
• Resistant to corrosion, foam, water vapor, temperature and pressure changes.
• The beam Angle is small and the energy is concentrated, which enhances the echo ability and helps to avoid interference.
• The measurement blind area is smaller, and good results can be achieved for small tank measurement.
• High signal-to-noise ratio, even in the case of fluctuations can achieve better performance.

Company Introduction

 Xi'an Dehou Electronic Technology Co., Ltd. is a high-tech enterprise specializing in research and development, production, sales of industrial automation instruments and providing Internet of Things solutions.

At present, the company has obtained more than 100 patents and more than 20 soft patents. It has passed IS09001 quality management, IS014001 environmental management, IS045001 Occupational Health and safety management, Occupational Health and Safety Management, GBT29490 Intellectual Property Management, military standard, information security and other system certification and EU CE certification, Russian EAC certification, ATEX explosion-proof certification and SIL certification and other qualifications.

The company is committed to the system integration of process measurement, control, management and other aspects of the system and the development, development, production, sales and service of intelligent instruments and instruments of the Internet of Things.At present, it has metering level FM radar level, pulse radar level, radio frequency guide level, liquid level of magnetover, magnetoexpansion level, sound fork density (level), pressure, flow, multi-point thermometer, analysis, system and tank area meter.The products are widely used in petrochemical industry, coal chemical industry, metallurgy, electric power, building materials, food and medicine and environmental protection water treatment and other industries.

The company can provide customers with location, pressure, temperature, flow, measurement requirements of analytical instruments and cooperation of the Internet of T scheme.
