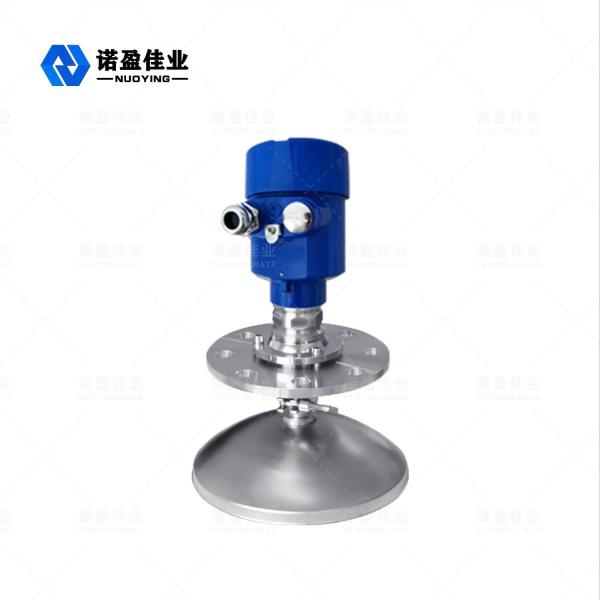

Hot Sale Polished Surface Type Solid 26GHz NYRD810 Radar Level
Transmitter
26GHz NYRD810 Radar Level Transmitter Working Principle
Radar level meter NYRD80X series sensor is a 26GHz high-frequency
radar level measuring instrument with a maximum measuring distance
of 80m. The antenna is further optimized, and the new fast
microprocessor can carry out higher rate signal analysis and
processing, making the instrument can be used in reaction kettle,
solid bin and some complex measurement conditions.
The radar object position antenna emits a narrow microwave pulse
that is transmitted downward through the antenna. After the pulse
wave touches the surface of the measured medium, it is reflected
back and received by the antenna system again. The signal is
transmitted to the electronic circuit part and automatically
converted into object level signal (Because pulses travel so fast,
the time it takes for an electromagnetic wave to reach its target
and bounce back to the receiver is almost instantaneous).
The datum of measurement: Spiral bottom surface or sealing surface
of flange.
26GHz NYRD810 Radar Level Transmitter Design Feature
1.Antenna size is small, easy to install; Non-contact radar, no
wear, no pollution.
2.Hardly affected by corrosion and foam; Not affected by medium
density, temperature and pressure changes.
3.Severe dust environment has little impact on the operation of
high frequency level meter.
4.Shorter wavelength, better reflection for inclined solid
surfaces.
5.Small beam angle and concentrated energy.
6.The measurement blind area is smaller, and good results can be
achieved for small tank measurement.
7.High signal-to-noise ratio for better performance even under
fluctuating conditions.
8.High frequency, the best choice for measuring solid and low
dielectric constant media.
26GHz NYRD810 Radar Level Transmitter Technical Parameters
| Typical application | Solid dust particles |
| Antenna material | 316L(optional) |
| Measuring range | 30m,80m(optional) |
| Measuring accuracy | 0.05%-0.1%F.S |
| Power supply | 24VDC(Two lines, four lines) |
| Medium temperature | -40~+130℃ |
| Process connection | flange, clamp (optional) |
| Process pressure | -0.1~4.0MPa |
| Protection level | IP67 |
| Explosion-proof grade | Exia II CT6(optional) |
| Signal output | 4...20mA/HART/RS485/Modbus... |
26GHz NYRD810 Radar Level Transmitter Application Field
1.Power plants: Reservoirs, silo pumps, steam ladles, ash storage,
oil tanks, etc.
2.Chemical: Raw material silo, reaction tank, ammonia tank, asphalt
storage tank, etc.
3.Metallurgy: Raw material silos, auxiliary material silos,
electrolytic cell buffer tanks, etc.
4.Foodstuffs: Raw sugar storage tank, etc.
5.Pharmaceuticals: Chinese pharmaceutical storage tanks,
separators, fermentation tanks, etc.
6.Paper: Raw material silo, storage tower, drying drum, chemical
material storage silo, etc.
7.Other: Quarry, coal mine, environmental protection, shipbuilding
and other industries.
