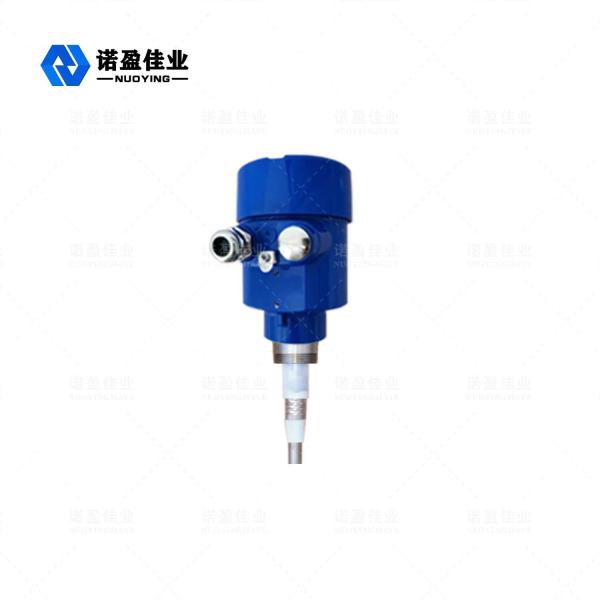

Compact And Accessible Strong Versatility 500mm NYSP-UK866 RF Admittance Level Switch

NYSP-UK866 RF Admittance Level Switch Working Principle

Radio Frequency Conductivity level switches work on the principle of backbone Radio Frequency (RF) capacitance technology. RF is applied to the probe and the impact caused by the surrounding environment is determined by continuous analysis. Since all materials have a dielectric constant and their conductivity differs from that of air, the overall impedance, reflected by the small capacitance shift, changes when the probe comes in contact with the material. Since the energized probe and the vessel wall form the two pole plates of a capacitor, when air (with a dielectric constant of 10) is replaced by any other material (with a dielectric constant > 1), the capacitive effect is enhanced. This changes the negative resistance of the application. That is, the change in capacitance value causes a change in impedance. This effect is measured by the circuit and compared with the reference value established by the sensitivity setting (circuit).

NYSP-UK866 RF Admittance Level Switch Design Feature

1.Strong versatility: it can measure liquid level and material level, also can meet the requirements of different temperature, pressure, mediums. Also can be used in corrosion, impact and other bad occasions.

2.Anti-hanging of material: the unique circuit design and sensor structure make its measurement free from the influence of the sensor hanging material, no need to clean regularly, and avoid mismeasurement.

3.Maintenance-free: no moving parts during measuring, no mechnical parts damage problem , no need regular maintenance.

4.Anti-interference: contact measurement, strong anti-interference ability, can overcome the influence of steam, foam and agitation.

5.Accurate and reliable: the measurement quantity is diversified, which makes the measurement more accurate. Not affected by environmental changes, with high stability and long service life.

NYSP-UK866 RF Admittance Level Switch Technial Parameters

Company Introduction

 Xi'an Dehou Electronic Technology Co., Ltd. is a high-tech enterprise specializing in research and development, production, sales of industrial automation instruments and providing Internet of Things solutions.

At present, the company has obtained more than 100 patents and more than 20 soft patents. It has passed IS09001 quality management, IS014001 environmental management, IS045001 Occupational Health and safety management, Occupational Health and Safety Management, GBT29490 Intellectual Property Management, military standard, information security and other system certification and EU CE certification, Russian EAC certification, ATEX explosion-proof certification and SIL certification and other qualifications.

The company is committed to the system integration of process measurement, control, management and other aspects of the system and the development, development, production, sales and service of intelligent instruments and instruments of the Internet of Things.At present, it has metering level FM radar level, pulse radar level, radio frequency guide level, liquid level of magnetover, magnetoexpansion level, sound fork density (level), pressure, flow, multi-point thermometer, analysis, system and tank area meter.The products are widely used in petrochemical industry, coal chemical industry, metallurgy, electric power, building materials, food and medicine and environmental protection water treatment and other industries.

The company can provide customers with location, pressure, temperature, flow, measurement requirements of analytical instruments and cooperation of the Internet of T scheme.
