Measuring Tank Magnetic Flap Level Meter For Liquid Corrosion
Resistant Occasions
Working principle
Magnetic level gauge can be used for all kinds of tower, tank,
tank, spherical container and boiler and other equipment medium
level detection. Magnetic level gauge can achieve high sealing,
leakage prevention and suitable for high temperature, high
pressure, corrosion resistant occasions.
The magnetic level gauge has a cavity to accommodate the floating
ball (called the measuring tube or the main tube), which is
composed of a connector with the container through a flange or
other suitable connection. According to the principle of the
connector, with the change of the liquid level in the container,
the page in the cavity and the liquid level in the container are of
the same height, so it drives the floating ball in the cavity to
move up and down, and rises and falls with the liquid level in the
container. At this time, we can not see the liquid level, so a
magnetic flip column display is installed outside the cavity.
Floating ball into liquid and were part of the border installed
permanent magnet steel, when the measured liquid level fluctuation
of the container, tube of the magnetic float level gauge ontology
is lifting, float in the permanent magnets by magnetic coupling to
a magnetic column indicator, column turn 180 ° driver red, white,
when the liquid level rises, double column from white to red, When
the liquid level drops, the column changes from red to white, and
the red and white junction of the indicator is the actual height of
the liquid level inside the container, so as to achieve a clear
indication of the liquid level.
1.Vent plug
2.Measuring tube
3.Magnetic flip display
4.Magnetic flip column
5.Float
6.Fixed clamp
7.Signage
8.Drain valve
9.Sewage pipe
10.Connection flange
Design feature
◎Simple structure, solid and reliable, stable operation.
◎The field display scale is clear and eye-catching and easy to
read.
◎Can measure and indicate the level of liquid with corrosive,
flammable, toxic, high temperature, stirring pollution.

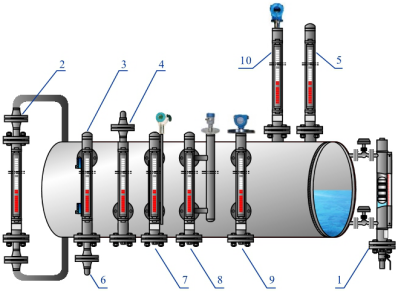

◎Various installation forms and various connection forms can be
selected.
◎The designed pressure range is full vacuum to 10MPa.
◎Design temperature range -160~+450℃.
◎It can be specially designed for special pressure and temperature.
Technical parameter
| Typical application | Liquid level measurement |
| Product model | NYUHZ |
| Installation form | Side mounted,top mounted |
| Main material | 304,316 |
| Measuring range | 0~6m |
| Measuring accuracy | ±3mm,±5mm,±10mm,±20mm(optional) |
| Medium density | ≥0.425g/cm³ |
| Density difference | ≥0.1g/cm³ |
| Medium viscosity | ≤0.4Pa.S |
| Control output | 220VAC,1A |
| Transmit output | 4...20mA(power supply 24VDC) |
| Process temperature | -50~+350℃ |
| Process pressure | -0.1~+16MPa |
| Process connection | Flange(optional) |
| Resolution | 士I mm |
| Protection class | IP65,IP67,IP68(optional) |
| Explosion-proof grade | ExiaⅡCT6Ga,ExdⅡ CT6Gb(see the certificate) |
♦ Remarks: Products can be customized according to your specific
requirements!
