    SS316L Digital Pressure Sensor For Water Liquid 4 - 20mA

    Ask Lasest Price
    Brand Name : NUOYINGJIAYE
    Model Number : NP-93420-IB
    Certification : CE/ExiaⅡCT6 Ga,ExdⅡCT6 Gb
    Price : $450 to $1700 /pcs
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 pcs/ pre month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    SS316L Digital Pressure Sensor For Water Liquid 4 - 20mA

    china suppliers low cost digital pressure sensor for water


    Product Description

    Description of china suppliers low cost digital pressure sensor for water

    china suppliers low cost digital pressure sensor for water uses piezoresistive silicon oil-filled sensor as the signal measuring element. LED pressure transmitter signal processing circuit located in the stainless steel housing, can convert sensor signal into standard output signal. china suppliers low cost digital pressure sensor for water and led pressure transmitter through components and semi-finished products test, finished products burn-in screening, are with stable and reliable performance.

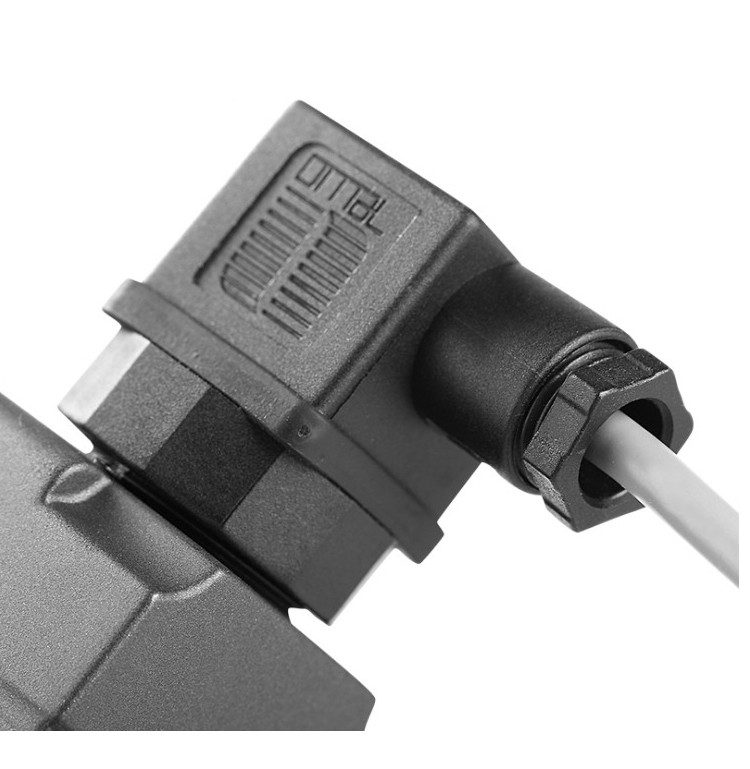

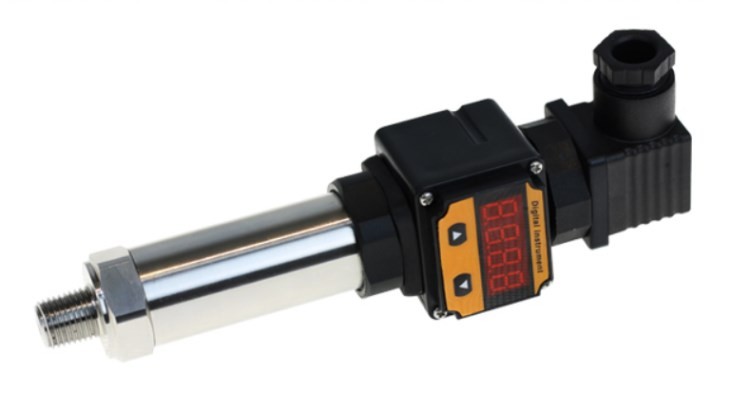

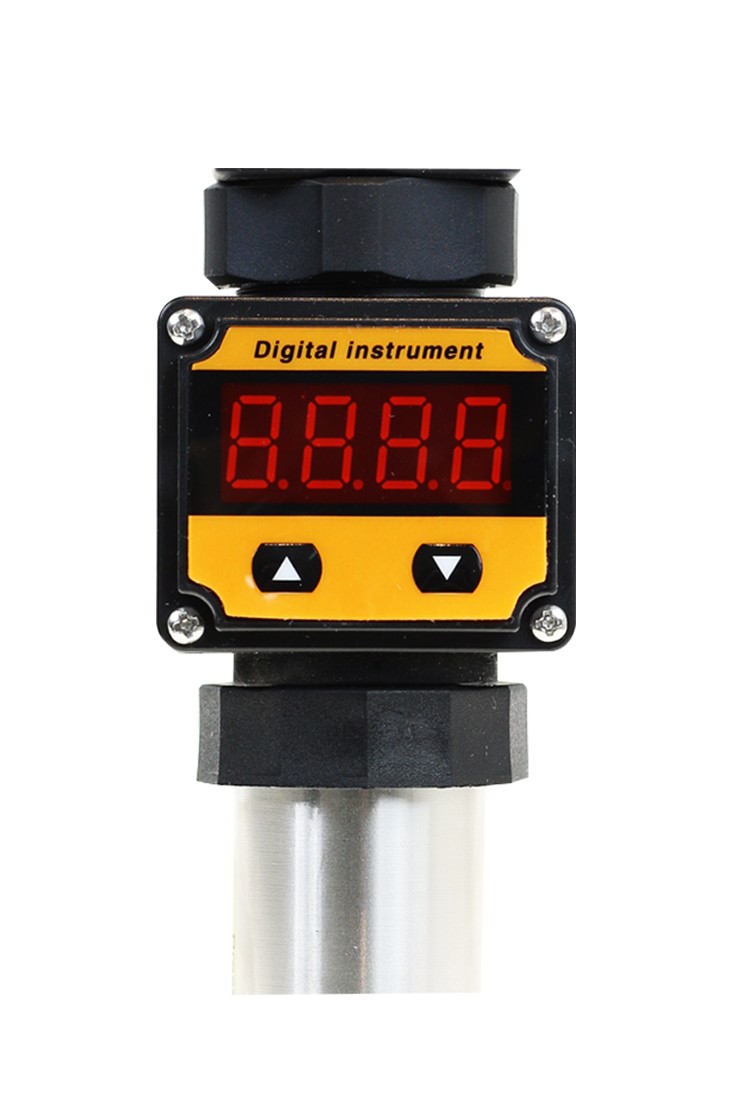

    Detailed Images
    SS316L Digital Pressure Sensor For Water Liquid 4 - 20mA
    SS316L Digital Pressure Sensor For Water Liquid 4 - 20mA
    SS316L Digital Pressure Sensor For Water Liquid 4 - 20mA
    SS316L Digital Pressure Sensor For Water Liquid 4 - 20mA
    SS316L Digital Pressure Sensor For Water Liquid 4 - 20mA
    Specification
    Item
    china suppliers low cost digital pressure sensor for water
    Measurement Range
    -0.1...0~0.01...~100MPa
    Proof pressure
    ≤1.5X rated pressure or 110MPa which ever is less
    Pressure type
    Gauge, absolute ,sealed gauge
    Accuracy
    ±0.25%(Typical) ±0.5%(Max.)
    Stability
    ±0.1%F.S/Year( Typical ) ±0.2%F.S/year( Max.)
    Temperature Error- Zero
    ±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(>100KPa)
    Temperature Error -Span
    ±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(>100KPa)
    OperatingTemperatureRange
    -20℃~80℃
    Power supply
    12~30VDC
    Output signal
    4~20mA 0~10/20mA 0/1~5VDC
    Pressure port
    M20×1.5 G1/2 or customize
    Housing material
    1Cr18Ni9Ti stainless steel
    Diaphragm material
    316L
    O-ring
    Fluororubber
    Protection
    IP65
    Insulation resistance
    100MΩ 100VDC
    Features
    SS316L Digital Pressure Sensor For Water Liquid 4 - 20mA

    Features of china suppliers low cost digital pressure sensor for water

    Wide measurement range, full stainless steel,Flush diaphragm.
    Various output signal
    Scene adjustable
    Protection: IP65
    Marking:ExiaIICT6
    CE certification

    SS316L Digital Pressure Sensor For Water Liquid 4 - 20mA
    Application

    Application of china suppliers low cost digital pressure sensor for water


    Compatible with 316LSS, noncorrosive gases & liquids
    Petroleum industry, chemical industry, metallurgy industry, electric power, hydrology etc.

    SS316L Digital Pressure Sensor For Water Liquid 4 - 20mA
