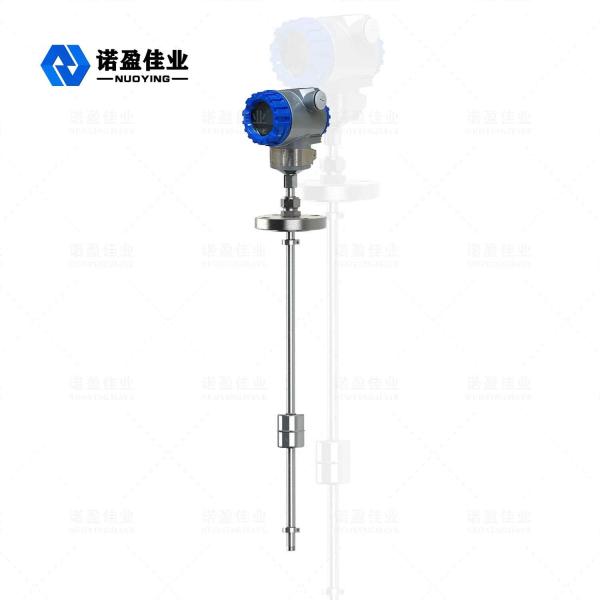

Completely Isolated Magnetic Floating ball level meter safe and reliable Industrial Applicatons

Simple Structure Magnetic Floating Ball Level Meter Operating Stably Operating Principle

Magnetic floating ball level meter adopts an ring-shape magnetic float ball to make the dry reed tubes in the main measuring rod pull in as the liquid level rises. Then it converts the liquid level into a corresponding resistance in order to output the signal. It converts the resistance signal into a two-wire 4-20mA current output by installing an integrated transmission circuit module in the junction box. Magnetic float level meter also provides on-site LED digital display to measure the liquid level. NYFZ-X series products are standard, anti-corrosion and explosion-proof.

Magnetic floating ball level meter works on the principle of floatage and magnetic coupling. A group of dry reed tubes and precision resistors are installed in the detection tube. When the magnetic float ball moves up and down along the detection tube with the change of liquid level, the dry reed tubes are connected in turns to change the output resistance value of the detection tube. The conversion circuit module in the junction box converts the value into 4~20mA current output.

The float ball can be different materials and shapes. Such as 1Cr18Ni9Ti, PP, PVC, PTFE and other materials. To measure various working conditions such as anti-corrosion, explosion-proof and pressure resistance. When selecting a magnetic float level meter, please pay attention to the density and viscosity of the measured medium for better measurement.

Magnetic Floating Ball Level Meter Design Feature

◎ Simple structure, solid and reliable, stable operation.

◎ The display indicates the liquid level in red, which is intuitive, eye-catching and easy to read.

◎ Multiple installation forms and connection forms can be selected. Large measurement range, no blind area in the whole process of measurement.

◎ Continuous measurement of liquid level of various liquids and high-temperature, high-pressure, corrosive, flammable and explosive media. Display and tested medium

◎ Completely isolated, safe and reliable. Professional design can be carried out for special pressure and temperature.

Magnetic Floating Ball Level Meter Design Feature

Magnetic Floating Ball Level Meter Product Application

Magnetic floating ball level meter is suitable for liquid level display on chemical, petroleum and other industrial equipment containers. At present, it has been widely used in the liquid level measurement and control of petroleum, chemical, metallurgy, power, food, pharmaceutical, paper and other industries.

Company Introduction

 Xi'an Dehou Electronic Technology Co., Ltd. is a high-tech enterprise specializing in research and development, production, sales of industrial automation instruments and providing Internet of Things solutions.

At present, the company has obtained more than 100 patents and more than 20 soft patents. It has passed IS09001 quality management, IS014001 environmental management, IS045001 Occupational Health and safety management, Occupational Health and Safety Management, GBT29490 Intellectual Property Management, military standard, information security and other system certification and EU CE certification, Russian EAC certification, ATEX explosion-proof certification and SIL certification and other qualifications.

The company is committed to the system integration of process measurement, control, management and other aspects of the system and the development, development, production, sales and service of intelligent instruments and instruments of the Internet of Things.At present, it has metering level FM radar level, pulse radar level, radio frequency guide level, liquid level of magnetover, magnetoexpansion level, sound fork density (level), pressure, flow, multi-point thermometer, analysis, system and tank area meter.The products are widely used in petrochemical industry, coal chemical industry, metallurgy, electric power, building materials, food and medicine and environmental protection water treatment and other industries.

The company can provide customers with location, pressure, temperature, flow, measurement requirements of analytical instruments and cooperation of the Internet of T scheme.
