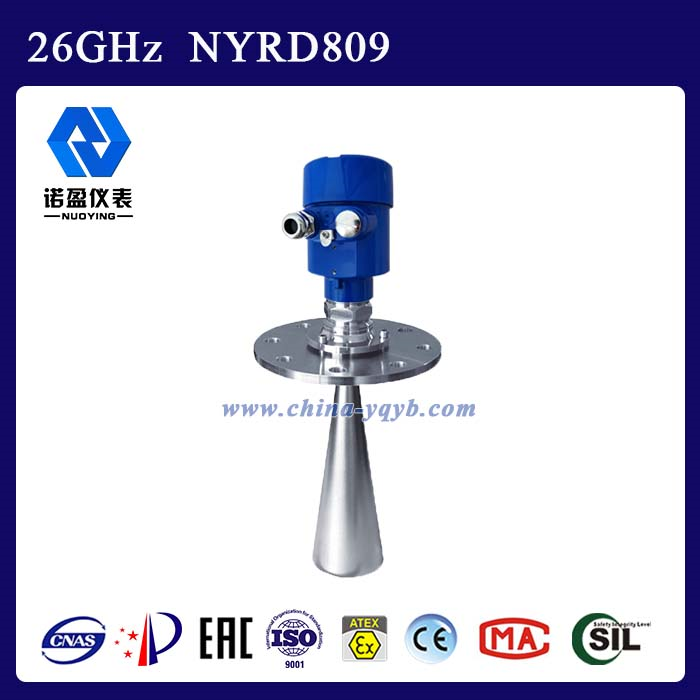

NYRD809 Radar Level Meter to measure fly ash material level vehicle
pocket range 35m
Working Principle
The radar level meter NYRD80X series sensor is a 26GHz
high-frequency radar level measuring instrument with a maximum
measurement distance of 80 meters. The antenna is further
optimized, and the new fast microprocessor can perform higher-speed
signal analysis and processing, so that the instrument can be used
for some complex measurement conditions such as reaction gold and
solid silos.
Design Feature
◎Antenna size is small, easy to install, non-contact radar, no
wear, no pollution.
◎Almost impervious to corrosion and foam. Not affected by medium
density, temperature and pressure change.
◎Serious dust environment has little effect on the work of high
frequency level meter.
◎Shorter wavelengths, better reflection of sloping solid surfaces.
◎Beam Angle is small, energy concentration, enhance the echo
ability at the same time is conducive to avoid interference.
◎The measurement blind area is smaller, and good results can be
achieved for small tank measurement.
◎High signal-to-noise ratio, even in the case of fluctuations can
achieve better performance.
◎High frequency, is the best choice for measuring solid and low
dielectric constant media.
Technical Parameters
| Product series | NYRD809 |
| Typical application | Solid dust particles |
| Transmit frequency | 26GHZ |
| Antenna form | Trumpet |
| Antenna material | 316L(optional) |
| Measuring range | 35m |
| Measurement accuracy | 0.05%～0.1%F.S |
| Power supply | 24VDC(two-wire, four-wire),220V AC |
| Signal output | 4...20mA/RS485 |
| Live display | LCD |
| Process temperature | -40～+250℃ |
| Process pressure | -0.1～4.0MPa |
| Process connection | Flange,bracket(optional) |
| Electrical Interface | M20 1 5 × . , ½ "NPT |
| Shell material | Aluminum, stainless steel 304 (optional) |
| Protection grade | IP67 |
| Explosion-proof grade | ExiaⅡCT6 Ga , ExdⅡCT6 Gb(see the certificate for details) |
Application Field
NYRD809 was used to measure fly ash material level, vehicle pocket
material level, open square body cone-bottom metal storage tank,
normal temperature and pressure.
