Radar Water Level Sensor Transmitter,Level Sensor For Water
Description
Radar level sensor emits a very narrow microwave pulse, the pulse
to the speed of light in the space, encountered the surface of the
measured medium, part of its energy is reflected back, the same
antenna to receive. The time interval between the transmitting
pulse and the receiving pulse is proportional to the distance from
the antenna to the surface of the measured medium to calculate the
distance from the antenna to the surface of the measured medium.
Detailed Images
Specification
| Radar Water Level Sensor Transmitter,Level Sensor For Water |
| Model No. | NYRD809 | NYRD802 | SLK-NYRD803 |
| Measuring Range | 0~20 meters, 0~35 meters |
| Working Frequency | 6.8Ghz |
| Power Supply | 24V DC (±10%) |
| Current Signal | 4~20mA RS485 (opetional) |
| Accuracy | <0.1% |
| Resolution | 1mm |
| Response Time | 0.2S |
| Environment Temp. | -40℃ ~ 250℃ |
| Pressure Gauge | -1 ~ 40Bar |
| Interface | 2pcs M20×1.5 or 2Pcs 1/2Npt (Cable OD 5~9mm) |
| Application | Power Plants, Oil Fields, Chemicals, Metallurgy, Cement, Water
Treatment, Paper Making, and Others |
| Beam Angle | 24" | 24" | 24" |
| Antenna Material | PP or PTFE | PTFE | SS |
| Process Connection | Thread(G11/2A or 11/2Npt Optional) | Flange | Flange |
Drawings Radar Water Level Sensor Transmitter,Level Sensor For
Water

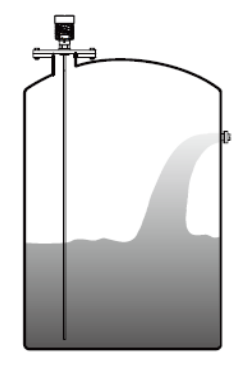

Applications
-Power plant: coal pile, the original coal bunker, fuel tanks,
reservoirs, waste gas purification tank, warehouse pumps, ash
library, fuel tanks, etc.
-Oil field: crude oil or refined oil storage tank, three - phase
separator, settling tank, sewage tank and oil - water interface,
drilling mud tank;
-Chemical: crude oil distillation tower, raw materials and
intermediate silos, reaction tanks, ammonia tanks, solid silos,
separators, etc .;
-Metallurgical: ore silo, ore grinder, raw materials warehouse,
auxiliary materials warehouse, blast furnace, alumina powder
warehouse, electrolytic tank buffer tank;
-Cement: stone warehouse, raw silo, cement warehouse, coal
warehouse, slag storage bin;
-Water treatment: reservoirs, sewage tanks, water treatment tanks,
sedimentation tanks, deep wells, drinking water networks;
-Paper: raw materials warehouse, storage tower, drying drum,
chemical materials storage warehouse, etc.
-Other: quarry, food, pharmaceutical, environmental protection,
shipbuilding and other industries;
