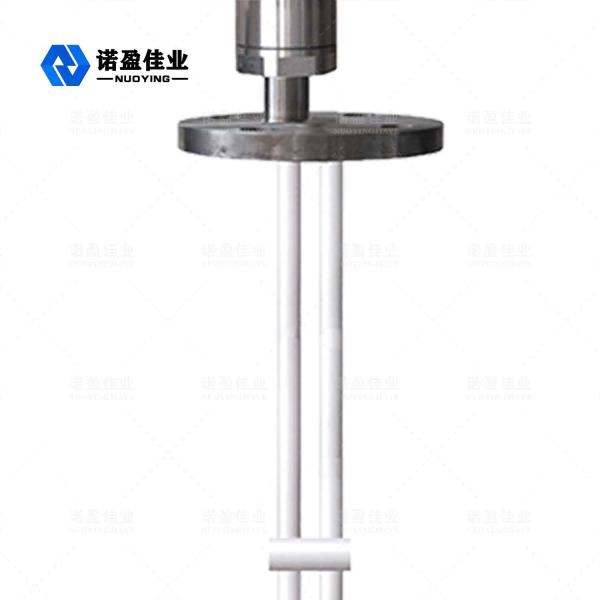

NYSP-M21 RF Admittance Level Transmitter For Low dielectric
constant liquid
The working Principle of NYSP-M21 RF Admittance Level Transmitter
For Low Dielectric Constant Liquid
The RF admittance level meter is mainly composed of a detection
part and a transmission part. The detection part includes a probe,
a protective casing, etc.; , Modulation drive amplifier, filter
damping link, voltage limit and voltage-current conversion circuit,
etc. According to the bridge principle, the increased capacitance
due to the rise of the liquid level makes the bridge unbalanced. At
the same time, the output voltage of the demodulator, which is
proportional to the unbalance of the bridge, is filtered and
amplified, output damped, and converted into voltage/current.
4-20mA current signal proportional to level. Whether it is a radio
frequency capacitance level meter or a radio frequency admittance
level meter, it can accurately measure the level of the medium, but
compared with the ordinary radio frequency capacitance level meter,
the radio frequency admittance level meter is more suitable for
measuring the material level, because it can The influence of
hanging material on material level measurement is well handled.
Design features of NYSP-M21 RF Admittance Level Transmitter For Low Dielectric
Constant Liquid
◎ anti hanging: the unique driving shield circuit design improves
the anti hanging ability
◎ power supply range: power supply working range: 13 ~ 35vdc
◎ probe process temperature: - 100 ℃ ~ 800 ℃
◎No dead zone measurement, can be applied to a large range of
material level measurement occasions of more than ten centimeters
or even several centimeters
◎The maximum measuring range can reach hundred meters, even
hundreds of meters
◎Viscous material interface measurement is a great advantage of
this instrument
◎stable and reliable output, resistant to fly ash, falling
material, water vapor, crystallization and wax
◎no movement, no parts easy to wear, no regular cleaning,
maintenance and debugging
Technical parameters of NYSP-M21 RF Admittance Level Transmitter For Low Dielectric
Constant Liquid
| Typical application | Liquid(Corrosion, conductivity, low dielectric constant, stirring,
interface, electric dehydration, viscosity, deep well, ultra large
range and other occasions) |
| Dust (conductivity, insulating powder, etc.) |
| Solid (conductivity, insulating, ultra-high temperature insulating
solid, etc.) |
product model
| NYSP-M16 NYSP-M17 NYSP-M18 NYSP-M19 NYSP-M20 NYSP-M21 NYSP-M22
NYSP-M23 NYSP-M24 |
Antenna form
| Soft cable, insulated soft cable, non insulated soft cable, hard
rod, insulated hard rod, insulated hard rod at both ends,
cylindrical hard rod |
| Antenna Material | PTFE,304,316 |
| measuring range | 3m, 20m(Deep well can measure hundreds of meters and can be
customized) |
| Wavelength | 635-650mm |
| Measurement precision | 0.05%~0.1%F.S |
| Power supply | 24VDC |
signal output | 4...20mA/HART/ RS485/Modbus…. |
| Process temperature | -40~+130℃,-100~+200℃, -40~+260℃, -50~+500℃ |
| Process pressure | -0.1~1.6MPa,-0.1~4.0MPa, -0.1~6.3MPa |
| Process connection | screw thread,flange(selectable) |
| Electrical interface | M20*1.5,½ ″NPT |
| levels of protection | IP65,IP67,IP68(selectable) |
| Explosion-proof grade | Exia II CT6 Ga,Exd II CT6 Gb(See certificate for details)
|
※Note:The product can be customized according to the specific
requirements of users.
