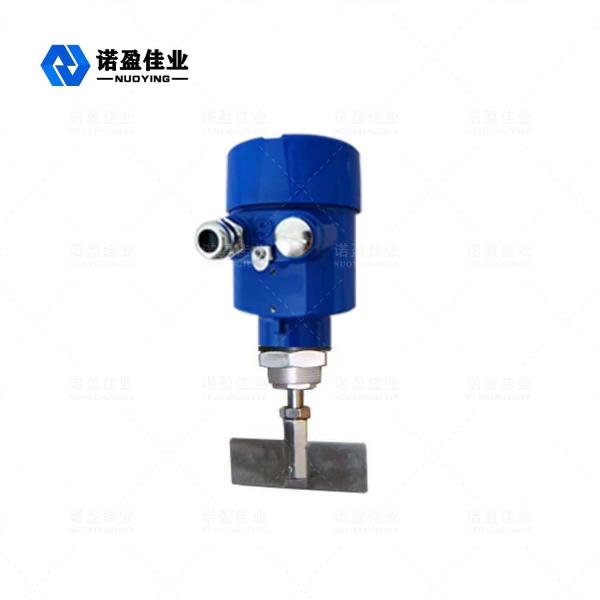

Atmospheric Pressure Rotary Paddle Level Switch Font Blade

Working principle of Atmospheric Pressure Rotary Paddle Level Switch Font Blade

The micro-motor of alternating current is used to decelerate, so that the speed of the monitoring blade also decreases, and the level of the material will rise at this time, which will hinder the rotation of the blade. At this time, the detection device in the rotary material level switch will rotate and displace with the main shaft as the core, so that the micro switch will send a signal that there is material in the equipment, and at the same time, another material level control switch will send a signal to cut off the power supply to stop the equipment. turn.

When the material level begins to drop, the rotation of the blade is no longer hindered. With the help of the tension of the spring, the detection mechanism returns to its original state. signal, the device resumes normal operation. The rotary material level switch controls the start and stop of the equipment through such a set of principles.

Design Features of Atmospheric Pressure Rotary Paddle Level Switch Font Blade

◎ unique oil seal design can prevent dust from penetrating along the shaft;

◎The motor of imported resistance rotary switch has reliable performance, and double sealed bearings can ensure long-term continuous operation;

◎ Simple structure and convenient installation;

◎ stable and reliable, and the torque can be adjusted;

◎ a variety of probe forms can be applied to different occasions.

Technical Parameters of Atmospheric Pressure Rotary Paddle Level Switch Font Blade

※Note:The product can be customized according to the specific requirements of user

Company Introduction

 Xi'an Dehou Electronic Technology Co., Ltd. is a high-tech enterprise specializing in research and development, production, sales of industrial automation instruments and providing Internet of Things solutions.

At present, the company has obtained more than 100 patents and more than 20 soft patents. It has passed IS09001 quality management, IS014001 environmental management, IS045001 Occupational Health and safety management, Occupational Health and Safety Management, GBT29490 Intellectual Property Management, military standard, information security and other system certification and EU CE certification, Russian EAC certification, ATEX explosion-proof certification and SIL certification and other qualifications.

The company is committed to the system integration of process measurement, control, management and other aspects of the system and the development, development, production, sales and service of intelligent instruments and instruments of the Internet of Things.At present, it has metering level FM radar level, pulse radar level, radio frequency guide level, liquid level of magnetover, magnetoexpansion level, sound fork density (level), pressure, flow, multi-point thermometer, analysis, system and tank area meter.The products are widely used in petrochemical industry, coal chemical industry, metallurgy, electric power, building materials, food and medicine and environmental protection water treatment and other industries.

The company can provide customers with location, pressure, temperature, flow, measurement requirements of analytical instruments and cooperation of the Internet of T scheme.
