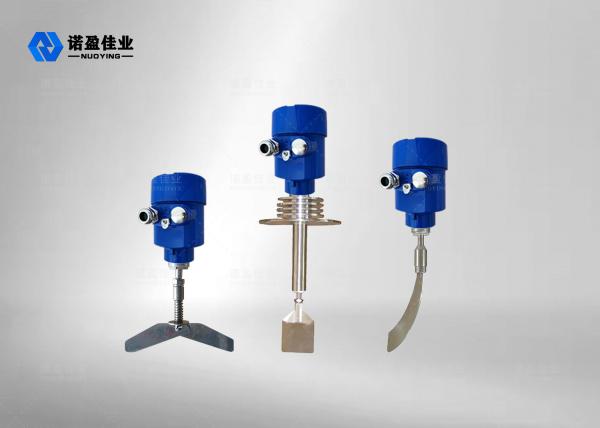

Reliable Rotary Paddle Level Switch Double Sealed Bearing

Working principle of Reliable Rotary Paddle Level Switch Double Sealed Bearing

The working principle is to use a micro-motor as the driving device, and the transmission shaft is connected with the clutch. When the material is not in contact with the material, the motor runs normally. When the blade contacts the material, the motor stops rotating, the detection device outputs a contact signal, and the power is cut off to stop the rotation. When the material falls, the resistance on the blade disappears, and the detection device relies on the torsion spring to return to the original state. The torque can be adjusted for different specific gravity materials.

Design Features of Reliable Rotary Paddle Level Switch Double Sealed Bearing

◎ unique oil seal design can prevent dust from penetrating along the shaft;

◎The motor of imported resistance rotary switch has reliable performance, and double sealed bearings can ensure long-term continuous operation;

◎ Simple structure and convenient installation;

◎ stable and reliable, and the torque can be adjusted;

◎ a variety of probe forms can be applied to different occasions.

Technical Parameters of Reliable Rotary Paddle Level Switch Double Sealed Bearing

※Note:The product can be customized according to the specific requirements of user

Company Introduction

 Xi'an Dehou Electronic Technology Co., Ltd. is a high-tech enterprise specializing in research and development, production, sales of industrial automation instruments and providing Internet of Things solutions.

At present, the company has obtained more than 100 patents and more than 20 soft patents. It has passed IS09001 quality management, IS014001 environmental management, IS045001 Occupational Health and safety management, Occupational Health and Safety Management, GBT29490 Intellectual Property Management, military standard, information security and other system certification and EU CE certification, Russian EAC certification, ATEX explosion-proof certification and SIL certification and other qualifications.

The company is committed to the system integration of process measurement, control, management and other aspects of the system and the development, development, production, sales and service of intelligent instruments and instruments of the Internet of Things.At present, it has metering level FM radar level, pulse radar level, radio frequency guide level, liquid level of magnetover, magnetoexpansion level, sound fork density (level), pressure, flow, multi-point thermometer, analysis, system and tank area meter.The products are widely used in petrochemical industry, coal chemical industry, metallurgy, electric power, building materials, food and medicine and environmental protection water treatment and other industries.

The company can provide customers with location, pressure, temperature, flow, measurement requirements of analytical instruments and cooperation of the Internet of T scheme.
