26G RS485 Smart Digital Long Distance Radar Level Meter 35m Level Transmitter For Solid Powder with CE and Low Price

NYRD809 26GHz Radar Level Transmitter Product Description

The NYRD809 Radar level transmitter is a 26GHz high-frequency radar level measuring instrument with a maximum measurement distance of 35 meters. The antenna is further optimized, and the new fast microprocessor can perform higher-speed signal analysis and processing, so that the instrument can be used for some complex measurement conditions.

NYRD809 26GHz Radar Level Transmitter Working Principle

The radar level antenna emits narrow microwave pulses, which are transmitted downward through the antenna. After the pulse wave touches the surface of the measured medium, it is reflected back and received by the antenna system again, and the signal is transmitted to the electronic circuit part and automatically converted into a level signal (because the pulse propagation speed is extremely fast, the electromagnetic wave reaches the target and is reflected back to the receiver. The time it takes to go back and forth is almost instantaneous).

NYRD809 26GHz Radar Level Transmitter Design Features

1.Antenna size is small, easy to install; Non-contact radar, no wear, no pollution.

2.Hardly affected by corrosion and foam; Not affected by medium density, temperature and pressure changes.

3.Severe dust environment has little impact on the operation of high frequency level meter.

4.Shorter wavelength, better reflection for inclined solid surfaces.

5.Small beam angle and concentrated energy.

6.The measurement blind area is smaller, and good results can be achieved for small tank measurement.

7.High signal-to-noise ratio for better performance even under fluctuating conditions.

8.High frequency, the best choice for measuring solid and low dielectric constant media.

NYRD809 26GHz Radar Level Transmitter Application Fields

1.Power plants: Reservoirs, steam ladles, etc.

2.Oilfield: Three-phase separators, settling tanks, sewage tanks, drilling mud tanks, etc.

3.Chemical: Raw material silo, ammonia tank, asphalt storage tank, etc.

4.Metallurgy: Raw material silos, auxiliary material silos, etc.

5.Foodstuffs: Raw sugar storage tank, etc.

6.Pharmaceuticals: Chinese pharmaceutical storage tanks, separators, fermentation tanks, etc.

7.Paper: Raw material silo, storage tower, drying drum, chemical material storage silo, etc.

8.Other: Quarry, coal mine, environmental protection and other industries.

NYRD809 26GHz Radar Level Transmitter Technical Parameters

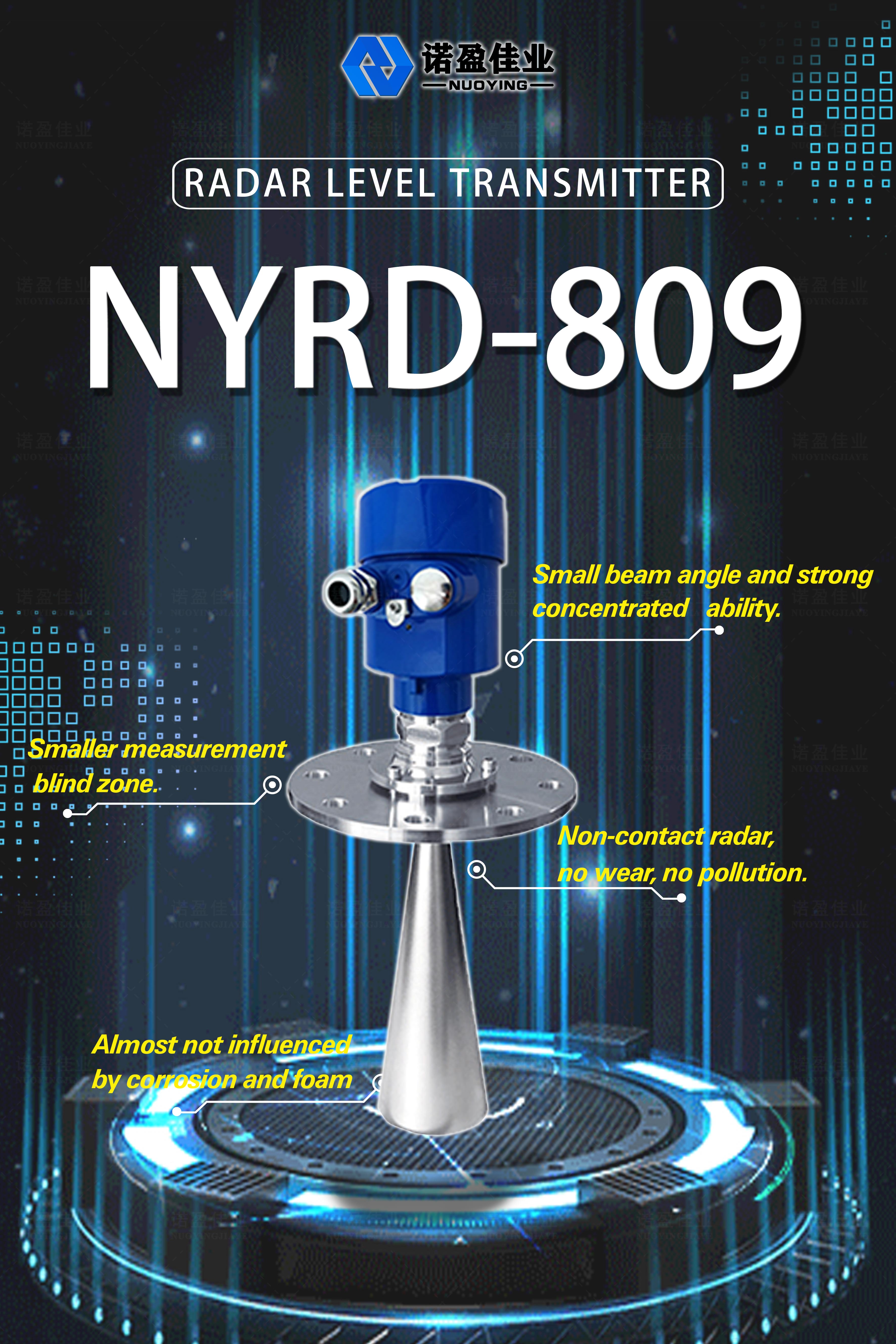

NYRD809 26GHz Radar Level Transmitter Pictures
