    4-20mA Hart Radar Level Meter 26GHz Radar Level Transmitter of 35m Range for Level Measurement under Dusty Conditions

    Ask Lasest Price
    Brand Name : NUOYING
    Model Number : NYRD809
    Certification : CE, ATEX, SIL
    Price : $158~$290/pc
    Payment Terms : T/T
    Supply Ability : 1000 pcs per month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    4-20mA Hart Radar Level Meter 26GHz Radar Level Transmitter of 35m Range for Level Measurement under Dusty Conditions


    4-20mA Hart Radar Level Meter 26GHz Radar Level Transmitter of 35m Range for Level Measurement under Dusty Conditions


    26GHz Radar Level Transmitter Product Description


    The NYRD809 Radar level transmitter is a 26GHz high-frequency radar level measuring instrument with a maximum measurement distance of 35 meters. The antenna is further optimized, and the new fast microprocessor can perform higher-speed signal analysis and processing, so that the instrument can be used for some complex measurement conditions.


    26GHz Radar Level Transmitter Design Features


    1.Antenna size is small, easy to install; Non-contact radar, no wear, no pollution.

    2.Hardly affected by corrosion and foam; Not affected by medium density, temperature and pressure changes.

    3.Severe dust environment has little impact on the operation of high frequency level meter.

    4.Shorter wavelength, better reflection for inclined solid surfaces.

    5.Small beam angle and concentrated energy.

    6.The measurement blind area is smaller, and good results can be achieved for small tank measurement.

    7.High signal-to-noise ratio for better performance even under fluctuating conditions.

    8.High frequency, the best choice for measuring solid and low dielectric constant media.


    26GHz Radar Level Transmitter Technical Parameters


    Typical applicationSolids, particles and strong dust
    Antenna materialPTFE, 316L (optional)
    Antenna typeHorn antenna
    Measuring range35m
    Measuring accuracy±3mm
    Power supply24VDC (2 Wire ,4 Wire)
    Process temperature-40~+250℃
    Process connectionThread, flange (optional)
    Process pressure-0.1~4.0MPa
    Protection classIP67
    Explosion-proof gradeExia II CT6
    Signal output4...20mA/HART/RS485/Modbus...

    Note: Products can be customized according to the specific requirements of users.

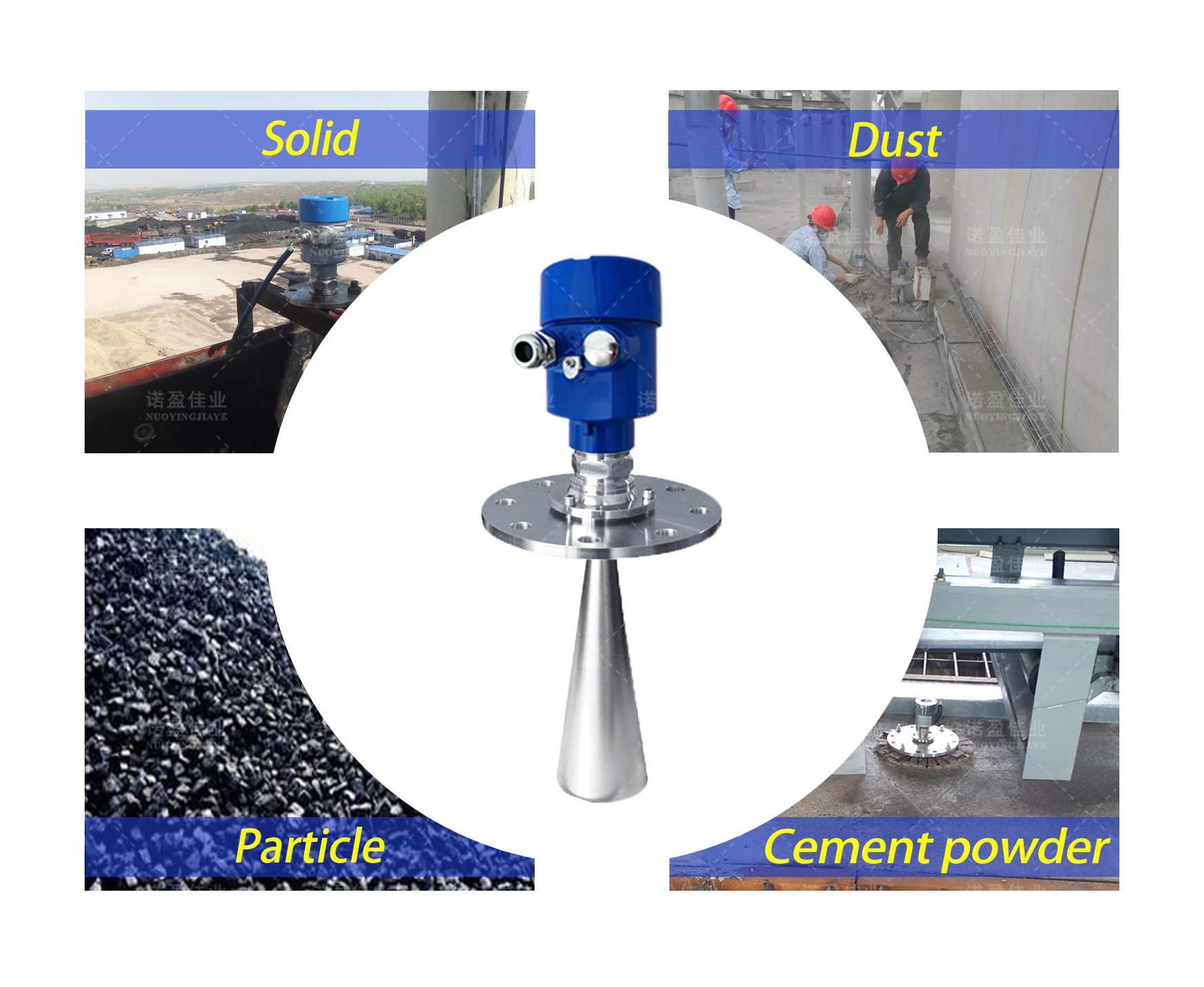

    26GHz Radar Level Transmitter Related Pictures
