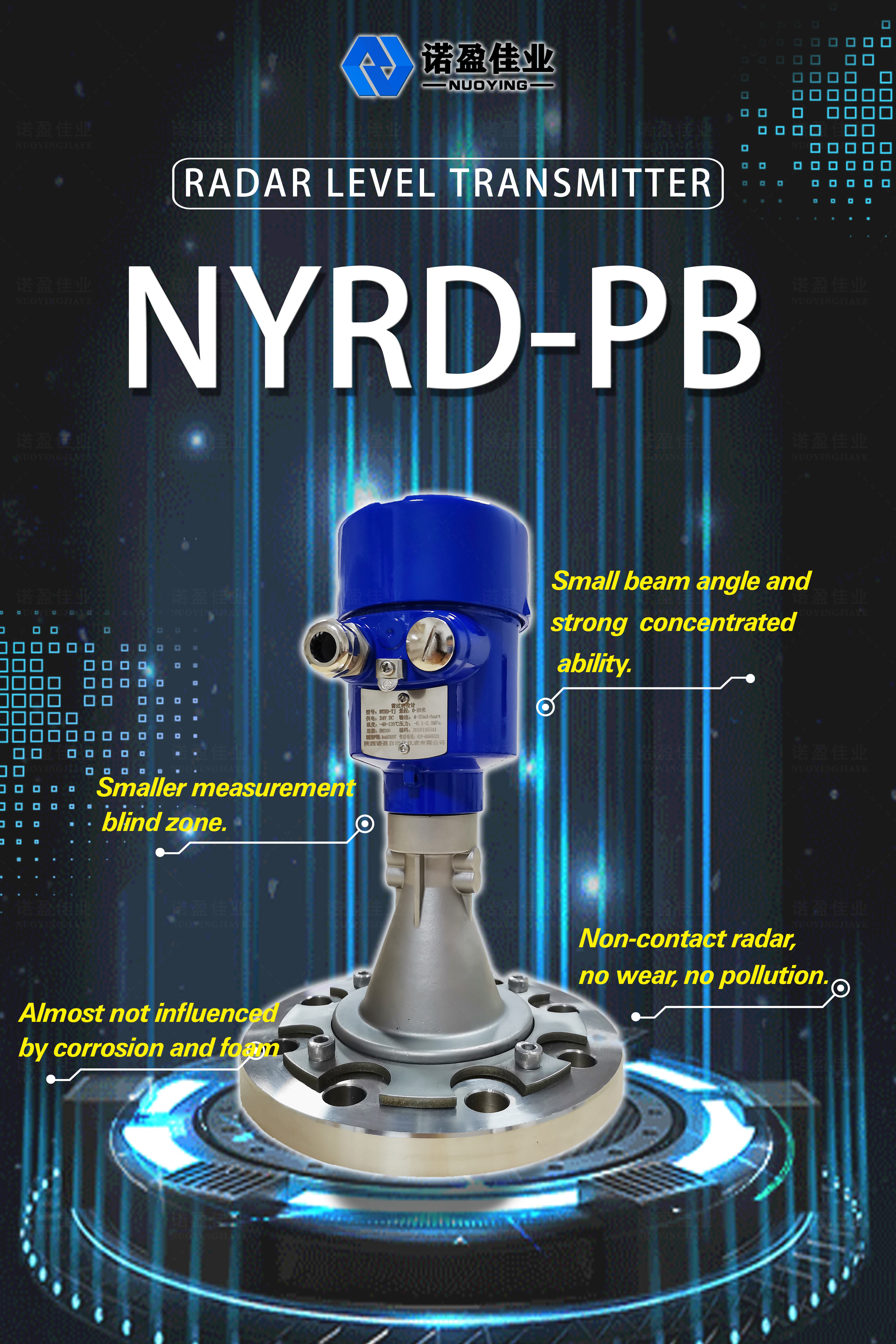

    Anti-corrosive 26GHz Radar Level Transmitter 40m Flanged Radar Level Sensor for Tank Liquids and Solid Particles 24VDC

    Ask Lasest Price
    Brand Name : NUOYING
    Model Number : NYRD-PB
    Certification : CE, ATEX, SIL
    Price : $328~$650/pc
    Payment Terms : T/T
    Supply Ability : 1000 pcs per month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    Anti-corrosive 26GHz Radar Level Transmitter 40m Flanged Radar Level Sensor for Tank Liquids and Solid Particles 24VDC


    Anti-corrosive 26GHz Radar Level Transmitter 40m Flanged Radar Level Sensor for Tank Liquids and Solid Particles 24VDC


    26GHz Radar Level Transmitter Product Description


    The NYRD-SD Radar level transmitter is a 26GHz high-frequency radar level measuring instrument with a maximum measurement distance of 40 meters. The radar level antenna emits narrow microwave pulses, which are transmitted downward through the antenna. The antenna is further optimized, higher-speed signal analysis and processing performed by the new fast microprocessor, so that the instrument can be used in some complex occasions such as steam, foam, dust, crystallization, condensation, etc.


    The datum of measurement: Thread bottom surface or sealing surface of flange.


    Note: When using the radar level transmitter, ensure that the highest level do not enter the measurement blind area (area D in the figure).


    26GHz Radar Level Transmitter Design Features


    • No mechanical wear, non-contact measurement, no pollution

    • All-weather operation, strong anti-interference ability

    • Not affected by medium density, temperature and pressure changes

    • Hardly affected by corrosion and foam


    26GHz Radar Level Transmitter Technical Parameters


    Product ModelNYRD-PB

    Typical application

    Powders, various liquids (especially corrosive liquids)

    Frequency

    26GHz

    Accuracy

    ±3mm

    Range

    40m

    Antenna material

    PTFE, 316L (optional)

    Antenna type

    Panel antenna

    Echo sampling

    100 times/s

    Process temperature

    -40~+260℃

    Process pressure

    -0.1~2.0MPa

    Process connection

    Bracket, flange (optional)

    Electrical Interface

    M20×1. 5, ½ " NPT

    Signal output

    4...20mA/RS485/Modbus...

    Power supply

    24VDC (Two lines, four lines)

    Explosion-proof grade

    Exia II CT6, Exd Ⅱ CT6 Gb

    Protection class

    IP67


    Note: Products can be customized according to the specific requirements of users.


    26GHz Radar Level Transmitter Related Pictures




    Anti-corrosive 26GHz Radar Level Transmitter 40m Flanged Radar Level Sensor for Tank Liquids and Solid Particles 24VDC
