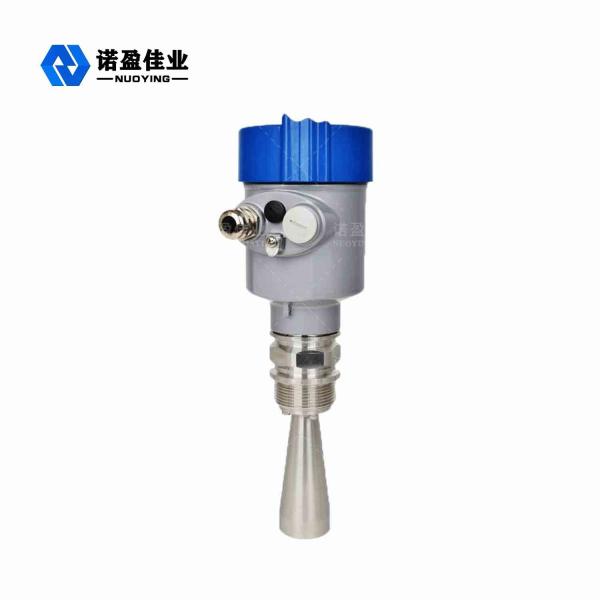

Cost-Effective 26GHz OEM ODM Water Radar Level Sensor 4-20mA 316SS outdoor Radar Level Gauge

26GHz Radar Level Transmitter Working Principle

The radar object position antenna emits a narrow microwave pulse that is transmitted downward through the antenna. After the pulse wave touches the surface of the measured medium, it is reflected back and received by the antenna system again. The signal is transmitted to the electronic circuit part and automatically converted into object level signal (Because pulses travel so fast, the time it takes for an electromagnetic wave to reach its target and bounce back to the receiver is almost instantaneous).

The datum of measurement: Thread bottom surface or sealing surface of flange.

Note: When using the radar level transmitter, ensure that the highest level do not enter the measurement blind area (area D in the figure).

26GHz Radar Level Transmitter Design Features

• Small beam angle and concentrated energy

• The measurement blind area is smaller, and good results can be achieved for small tank measurement

• High signal-to-noise ratio for better performance even under fluctuating conditions

• High frequency, the best choice for measuring solid and low dielectric constant media




26GHz Radar Level Transmitter Application Fields

1. Water Resources: Canals, reservoirs, farmland irrigation, river water level monitoring, flash flood warning, urban flooding, etc.

2. Foodstuffs: Juice factory, milk factory, brewery storage tank, etc.

3. Pharmaceuticals: Chinese pharmaceutical storage tanks, separators, fermentation tanks, etc.

4. Water treatment: Reservoirs, cesspools, water treatment tanks, sedimentation tanks, deep wells, drinking water networks, etc.

5. Paper: Storage tower, chemical material storage silo, etc.

6. Other: Quarry, environmental protection, shipbuilding and other industries.

26GHz Radar Level Transmitter Technical Parameters

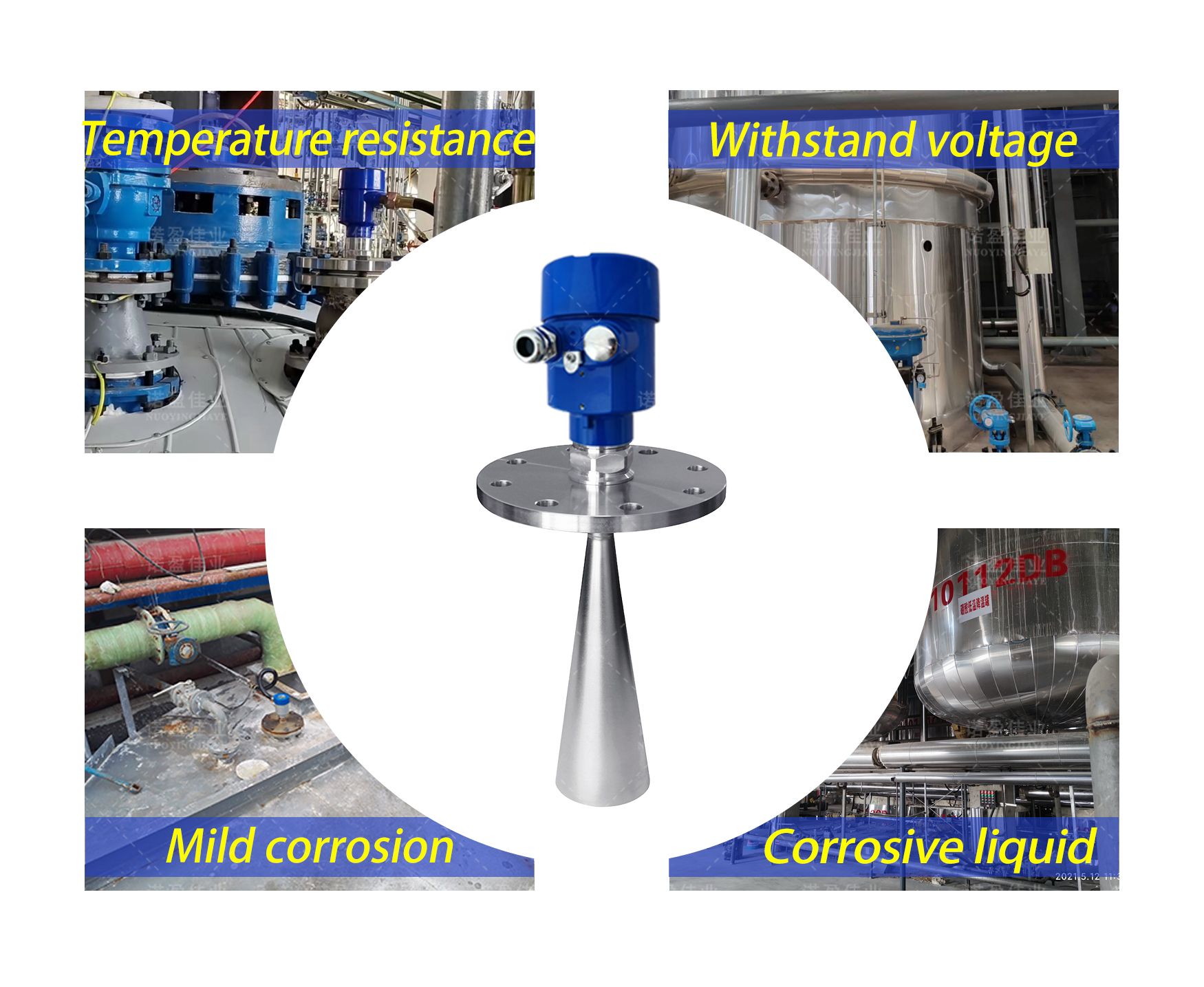

26GHz Radar Level Transmitter Related Pictures

Company Introduction

 Xi'an Dehou Electronic Technology Co., Ltd. is a high-tech enterprise specializing in research and development, production, sales of industrial automation instruments and providing Internet of Things solutions.

At present, the company has obtained more than 100 patents and more than 20 soft patents. It has passed IS09001 quality management, IS014001 environmental management, IS045001 Occupational Health and safety management, Occupational Health and Safety Management, GBT29490 Intellectual Property Management, military standard, information security and other system certification and EU CE certification, Russian EAC certification, ATEX explosion-proof certification and SIL certification and other qualifications.

The company is committed to the system integration of process measurement, control, management and other aspects of the system and the development, development, production, sales and service of intelligent instruments and instruments of the Internet of Things.At present, it has metering level FM radar level, pulse radar level, radio frequency guide level, liquid level of magnetover, magnetoexpansion level, sound fork density (level), pressure, flow, multi-point thermometer, analysis, system and tank area meter.The products are widely used in petrochemical industry, coal chemical industry, metallurgy, electric power, building materials, food and medicine and environmental protection water treatment and other industries.

The company can provide customers with location, pressure, temperature, flow, measurement requirements of analytical instruments and cooperation of the Internet of T scheme.
